This item is Discontinued.

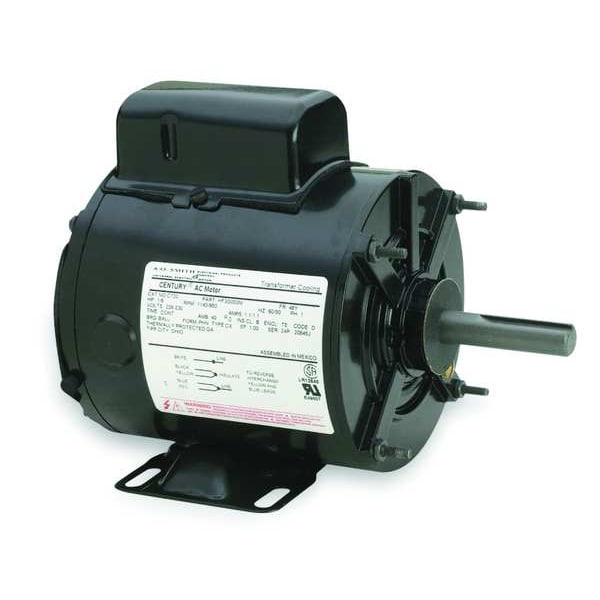

Century Fan Motor, 1/3 HP, 1075 RPM, 48Y Frame C723V1A

Fan Motor, 1/3 HP, 1075 RPM, 48Y Frame (Discontinued)

  • Mfr # C723V1A
  • Zoro # G2128061
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C723V1A
Zoro #
G2128061
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
2 1/2 in
Bolt Circle Dia.
5 1/8 in
Body Dia.
5 5/8 in
Length Less Shaft
7 in
Manufacturers Warranty Length
1 yr
Stud Size
#8-32
Overall Length
9 1/2 in

Details

Motor Sub Application
Transformer Cooling Fan
HP
1/3
RPM Range
1,001-1,100
No. of Speeds
1
Phase
Single
Voltage
115/200-230V AC
Motor Shaft Rotation
CW/CCW
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Design
Permanent Split Capacitor
Item
Transformer Cooling Fan Motor
Max. Ambient Temp.
65 Degrees C
Motor Service Factor
1.5
Motor Bearings
Ball
Full Load Amps
6.4/3.6-3.1 A
Ins. Class
B
Motor Thermal Protection
Auto
Nameplate RPM
1,075
Frame
48Y
Motor Mounting Type
Rigid Base
Includes
Capacitor
Hz
60/50 Hz
Duty
Continuous
Standards
CSA Certified, UL Recognized
Ambient Temperature
65 Degrees C
Voltage Compatibility
115/200-230V AC
Motor Application
HVAC/R
Capacitor Required
Yes
Usable @ 200V
Yes
Motor Frame Material
Steel
Usable @ 208V
Yes
Features
Rigid Base, Thermally Protected
Motor Shaft Design
Keyed
Motor Mounting Position
Horizontal or Vertical Shaft Up
Duty Cycle
Continuous
Conduit Box Location
Exterior
Weight
20 lb
Output Watts
250 W

Description

Transformer Cooling Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 HP, Nameplate RPM 1,075, No. of Speeds 1, Voltage 115/200-230V AC, 6.4/3.6-3.1 A Full Load Amps, 48Y Frame, Output Watts 250 W, 60/50 Hz Hz, Usable @ 208V Yes, Usable @ 200V Yes, Motor Service Factor 1.5, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 65 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over
