  11. Fan Motor, 1/3 HP, 1140 RPM, 56 Frame
This item is Discontinued.

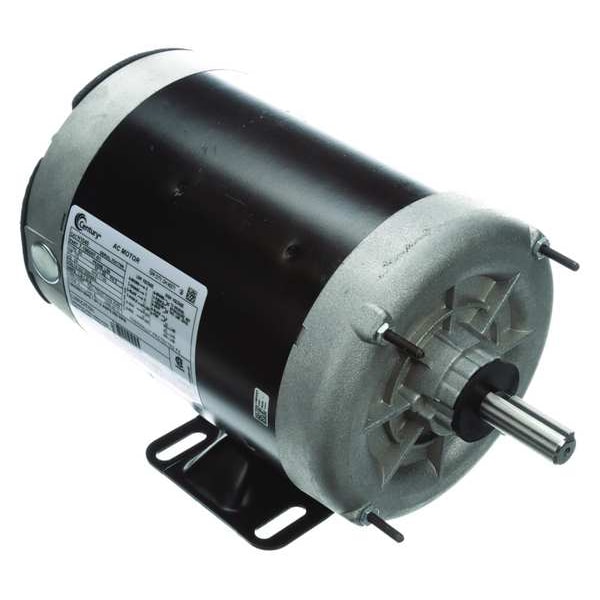

Century Fan Motor, 1/3 HP, 1140 RPM, 56 Frame H1040

Fan Motor, 1/3 HP, 1140 RPM, 56 Frame (Discontinued)

  • Mfr # H1040
  • Zoro # G2023822
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
H1040
Zoro #
G2023822
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Body Dia.
6 5/8 in
Length Less Shaft
10 1/4 in
Bolt Circle Dia.
5 13/16 in
Shaft Length
1 15/16 in
Mounting Stud Length
7/8 in
Overall Length
12 3/16 in
Stud Size
#10-32

Details

Motor Sub Application
Transformer Cooling Fan
HP
1/3
RPM Range
1,101-1,200
No. of Speeds
1
Phase
Three
Voltage
200-230/460V AC
Motor Shaft Rotation
CW/CCW
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Design
3-Phase
Motor Application
General Application
Frame
56
Ins. Class
B
Nameplate RPM
1,140
Motor Thermal Protection
Auto
Motor Service Factor
1.5
Duty
Continuous
Motor Bearings
Ball
Includes
190/380 V @ 50hz
Max. Ambient Temp.
65 Degrees C
Hz
60 Hz
Full Load Amps
1.9-1.8/0.9 A
Ambient Temperature
65 Degrees C
Standards
CSA Certified, UL Recognized
Motor Mounting Type
Rigid Base
Item
General Purpose Motor
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 200-230V AC, 200V AC
Duty Cycle
Continuous
Weight
27 lb
Features
Counterclockwise Rotation
Stud Quantity
4
Usable @ 200V
Yes
Motor Shaft Design
Keyed
Usable @ 208V
Yes
Output Watts
250 W
Motor Mounting Position
All Angle
Motor Frame Material
Steel

Description

General Purpose Motor, Three Phase, Motor Design 3-Phase, 1/3 HP, Nameplate RPM 1,140, No. of Speeds 1, Voltage 200-230/460V AC, 1.9-1.8/0.9 A Full Load Amps, Output Watts 250 W, 60 Hz Hz, Usable @ 208V Yes, Usable @ 200V Yes, Motor Service Factor 1.5, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 65 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base, Motor Frame Material Steel
