  6. Milk Pump Motor, 3-Phase, 1/2 HP, 208-230/460V AC, 3,450 Nameplate RPM, 56HCZ Frame

This item is Discontinued.

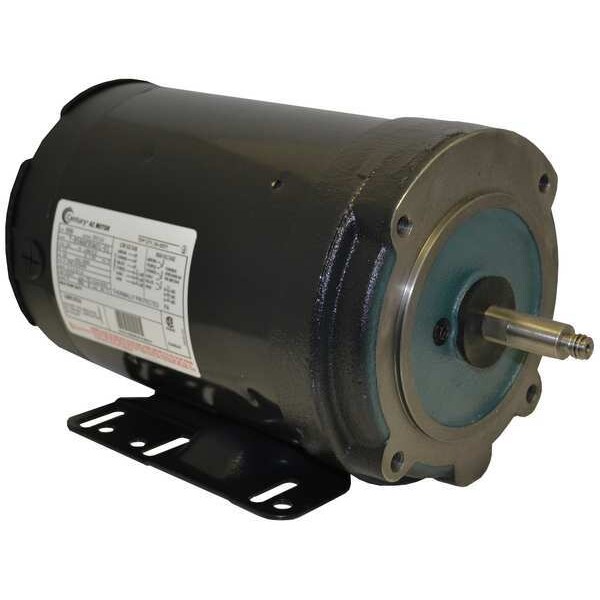

Century Milk Pump Motor, 3-Phase, 1/2 HP, 208-230/460V AC, 3,450 Nameplate RPM, 56HCZ Frame B596

Milk Pump Motor, 3-Phase, 1/2 HP, 208-230/460V AC, 3,450 Nameplate RPM, 56HCZ Frame (Discontinued)

  • Mfr # B596
  • Zoro # G5482233
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
B596
Zoro #
G5482233
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
9 5/8 in
Overall Length
11 15/16 in
Shaft Length
2 5/16 in
Shaft Dia.
1/2 in
Bolt Circle Dia.
5 7/8 in

Details

Item
Milk Pump Motor
Motor Design
3-Phase
Phase
Three
HP
1/2
RPM Range
3,001-3,600
Voltage
208-230/460V AC
Frame
56HCZ
Motor Service Factor
1
Motor Thermal Protection
Auto
Motor Enclosure Design
Totally Enclosed Nonventilated
Nameplate RPM
3,450
Motor Application
Farm Duty
Motor Frame Material
Steel
Motor Mounting Position
Horizontal, Vertical Shaft Down
Motor Mounting Type
Rigid Base
Motor Sub Application
Milk Pump
Motor Shaft Design
Threaded
Motor Shaft Rotation
CW/CCW
Standards
CSA Certified, UL Recognized
Hz
60 Hz
Full Load Amps
1.9-1.8/0.9 A
Motor Efficiency Group
Standard Efficient
Includes
Stainless Steel Shaft
Item - Farm Duty Motors
Milk Pump Motor
Frame Material
Rolled steel
Max. Ambient Temperature
40 Degrees C
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Finish
Black
Ins. Class
B
Duty
Continuous
Motor Bearings
Ball
Nominal Efficiency
68 %
No. of Speeds
1
Max. Ambient Temp.
40 Degrees C
Weight
26 lb
Duty Cycle
Continuous
Usable @ 208V
Yes
Usable @ 200V
No
Application
Farm Duty Milk Pump Motor

Description

Milk Pump Motor, Three Phase, Motor Design 3-Phase, 1/2 HP, Nameplate RPM 3,450, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 1.9-1.8/0.9 A, 56HCZ Frame, Usable @ 208V Yes, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Nonventilated, Motor Mounting Type Rigid Base
