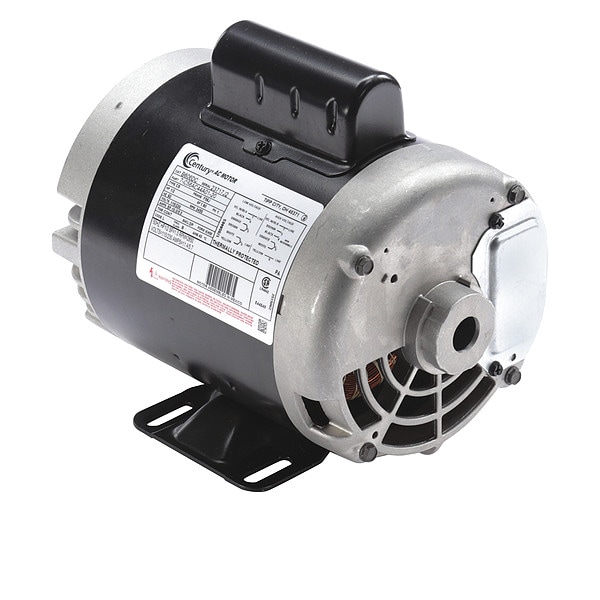

Century MODEL-CFHP-56FR B606DC - main

MODEL-CFHP-56FR

  • Mfr # B606DC

  • Zoro # G0791799

product price:  $250.99
/ea
Free Shipping & Returns

Key Features

Frame
F56J
HP
1/2 HP
Motor Application
OEM Replacement
Motor Design
Capacitor Start, Induction Run, Single Or Dual Voltage
Motor Enclosure Design
Drip Proof
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
B606DC
Zoro #
G0791799
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8"
Shaft Length
2.45"
Length Less Shaft
8 5/8 in
Bolt Circle Dia.
3/8 in
Body Dia.
6-1/2"
Manufacturers Warranty Length
1 yr.
Overall Length
11.3"
Height
8 3/8 in
Body Diameter
6.5 in
Frame Size
56J
Bolt Circle Diameter
3/8 in
Shaft Diameter
5/8 in

Details

Frame
F56J
HP
1/2 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Capacitor Start, Induction Run, Single Or Dual Voltage
Motor Enclosure Design
Drip Proof
Motor Mounting Type
Rigid Base
Motor Shaft Rotation
Clockwise
Motor Sub Application
Centrifugal Pumps Motor
Motor Thermal Protection
Manual
Nameplate RPM
3450 rpm
No. of Speeds
1
Number of Shafts
1
Phase
1
RPM Range
3,001-3,600
Voltage
115/230V
Motor Bearings
Ball
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Duty
Continuous
Full Load Amps
10.0/5.0 A
Capacitor Required
Included
Standards
UL Recognized, CSA Certified
Motor Shaft Design
Threaded
Hz
60 Hz
Motor Service Factor
1.00
Application
Centrifugal Pumps
Voltage Compatibility
115V AC, 230V AC
Usable @ 208V
Usable at 208V
Motor Frame Material
Rolled Steel
Weight
20 lb
Duty Cycle
Continuous
Usable @ 200V
Usable at 200V
Max. SF Amps
10.0/5.0 A
Inverter Rated
Not Inverter Rated
Regreasable Bearings
Permanently Lubricated Bearings
Motor Mounting Position
Horizontal
Conduit Box Location
Interior
Shaft Material
Stainless Steel
Number of Wires
9
Full Load Current @ 60 Hz
6.3/3.2 A
Shaft Design
Threaded
Product Type
Pump Motor
Ambient Temperature - Maximum
40 Degrees C
Insulation Class
B
Mounting Position
Horizontal
Frame Material
Steel
Service Factor Current
10.0/5.0 A
Number of Speeds
1
Bearing Lubrication Type
Permanently Lubricated Bearings
Nameplate Service Factor @ 60 Hz
1.6
Manufacturers Warranty
2 yr
Bearing Type
Ball
Motor Enclosure Type
Open Drip Proof
Frequency
60 Hz

Description

Pool Pump Motor, Body Dia. 6.5 in, Bolt Circle Dia. 3/8 in, Conduit Box Location Interior, Conduit Box Position Not Applicable, Duty Cycle Continuous, Frame F56J, Hz 60 Hz, Full Load Amps 6.3/3.2 A, Full Load Amps @ 50Hz Not Applicable, Height 8 3/8 in, HP 1/2, HP @ 50Hz Not Applicable, Ins. Class B, Inverter Rated Not Inverter Rated, Inverter Rating Not Applicable, Length Less Shaft 8 5/8 in, Manufacturers Warranty Length 2 yr, Max. Ambient Temp. 40 Degrees C, Max. SF Amps 10.0/5.0 A
