  11. Motor, 1/10 HP, OEM Replacement Brand: Carrier/BDP Replacement For: 3402
This item is Discontinued.

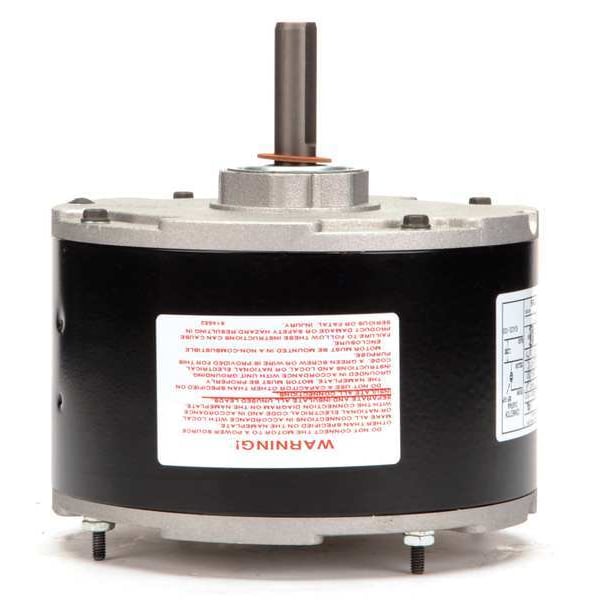

Century Motor, 1/10 HP, OEM Replacement Brand: Carrier/BDP Replacement For: 3402 OCA10106

Motor, 1/10 HP, OEM Replacement Brand: Carrier/BDP Replacement For: 3402 (Discontinued)

  • Mfr # OCA10106
  • Zoro # G0962211
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
OCA10106
Zoro #
G0962211
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2"
Shaft Length
1-5/8"
Length Less Shaft
4 5/8 in
Bolt Circle Dia.
5-3/16"
Body Dia.
5-5/8"
Manufacturers Warranty Length
1 yr.
Overall Length
5-5/8"
Stud Size
#8-32

Details

Frame
48Y
HP
1/10 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Totally Enclosed
Motor Mounting Type
Extended Studs
Motor Shaft Rotation
Clockwise Lead End
Motor Sub Application
Condenser Fan
Motor Thermal Protection
Automatic
Nameplate RPM
1100 rpm
No. of Speeds
1
Number of Shafts
1
OEM Replacement Brand
Carrier/BDP
Phase
1
RPM Range
1001-1100
Voltage
208-230V
Motor Bearings
Sleeve
Replacement For
3402
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Duty
Air Over
Full Load Amps
0.7A
Capacitor Required
2MDV4
Standards
UL Recognized, CSA Certified
Motor Shaft Design
Flat
Hz
60 Hz
Motor Service Factor
1.00
Application
Carrier/BDP
Mounting Stud Pattern
3-5/8" x 3-5/8"
Voltage Compatibility
115/208-230V AC, 208-230V AC, 208-240V AC
Usable @ 208V
Yes
Motor Frame Material
Steel
Weight
11 lb
Usable @ 200V
No
Motor Mounting Position
All Angle
Rotation
CWLE
Mounting
Stud
Number of Speeds
1

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/10 HP, Nameplate RPM 1,100, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 0.7 A, 48Y Frame, OEM Replacement Brand Carrier/BDP, Replacement For 3402, Usable @ 208V Yes, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 104 Degrees F, Motor Shaft Rotation CWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud
