  11. Motor, 1/12 HP, OEM Replacement Brand: Broan
This item is Discontinued.

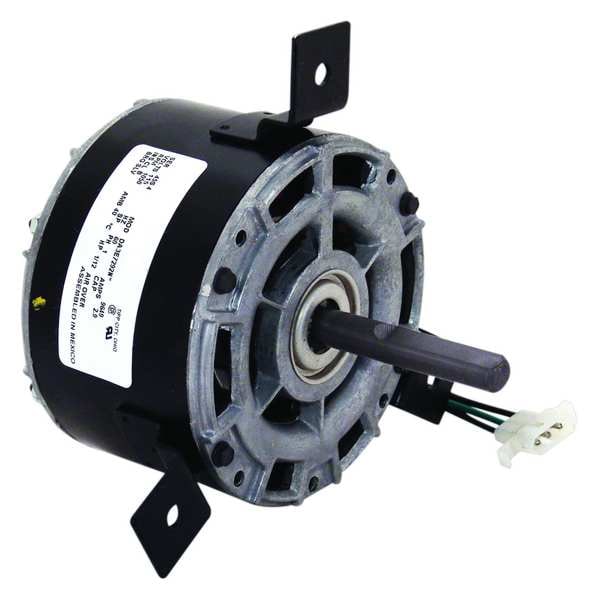

Century Motor, 1/12 HP, OEM Replacement Brand: Broan 9649

Motor, 1/12 HP, OEM Replacement Brand: Broan (Discontinued)

  • Mfr # 9649
  • Zoro # G0485527
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9649
Zoro #
G0485527
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2"
Shaft Length
2.69"
Length Less Shaft
3 1/4 in
Bolt Circle Dia.
6-3/4"
Body Dia.
5"
Manufacturers Warranty Length
1 yr.
Overall Length
5.94"

Details

Frame
42Y
HP
1/12 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Shaded Pole
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Lug
Motor Shaft Rotation
Counterclockwise Lead End
Motor Sub Application
Direct Drive Fan/Blower
Motor Thermal Protection
Automatic
Nameplate RPM
1050 rpm
No. of Speeds
1
Number of Shafts
1
OEM Replacement Brand
Broan
Phase
1
RPM Range
1001-1100
Voltage
115V
Motor Bearings
Sleeve
Replacement For
Broan 99080178, Fasco D1087, 7151-3160, Universal Electric DA3E278
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Duty
Air Over
Full Load Amps
2.9A
Capacitor Required
No
Standards
UL Recognized, CSA Certified
Motor Shaft Design
Flat
Hz
60 Hz
Motor Service Factor
1.00
Application
Fan/Blower
Voltage Compatibility
115V AC, 120V AC
Usable @ 208V
No
Weight
7 lb
Motor Frame Material
Steel
Usable @ 200V
No
Motor Mounting Position
Horizontal
Rotation
CCWLE

Description

OEM Replacement Motor, Single Phase, Motor Design Shaded Pole, 1/12 HP, Nameplate RPM 1,050, No. of Speeds 1, Voltage 115V AC, Full Load Amps 2.9 A, 42Y Frame, OEM Replacement Brand Broan, Replacement For Broan 99080178, Fasco 7151-3160, Fasco D1087, Universal Electric DA3E278, Usable @ 208V No, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Open Air-Over
