  11. Motor, 1/15, 1/45, 1/60 HP, OEM Replacement Brand: Trane Replacement For: K48HXBJA-956

This item is Discontinued.

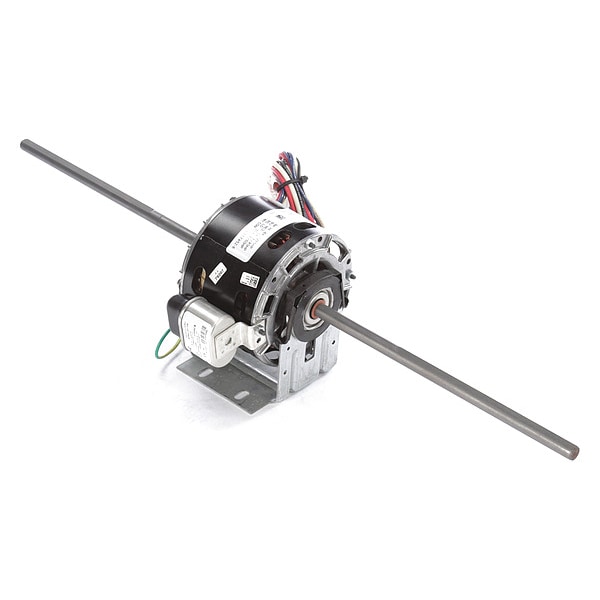

Century Motor, 1/15, 1/45, 1/60 HP, OEM Replacement Brand: Trane Replacement For: K48HXBJA-956 953

Motor, 1/15, 1/45, 1/60 HP, OEM Replacement Brand: Trane Replacement For: K48HXBJA-956 (Discontinued)

  • Mfr # 953
  • Zoro # G2033851
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
953
Zoro #
G2033851
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2"
Shaft Length
10.8" x 10.9"
Length Less Shaft
3 1/4 in
Body Dia.
5"
Manufacturers Warranty Length
1 yr.
Overall Length
25.43"

Details

Frame
42Y
HP
1/15, 1/45, 1/60 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Enclosed
Motor Mounting Type
Resilient Base
Motor Shaft Rotation
Clockwise Lead End
Motor Sub Application
Direct Drive Fan/Blower
Motor Thermal Protection
Automatic
Nameplate RPM
1100 rpm
No. of Speeds
3
Number of Shafts
1
OEM Replacement Brand
Trane
Phase
1
RPM Range
1001-1100
Voltage
115V
Motor Bearings
Sleeve
Replacement For
K48HXBJA-956
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Duty
Continuous Air Over
Full Load Amps
0.8/0.5/0.35A
Capacitor Required
Included
Standards
UL Recognized, CSA Certified
Motor Shaft Design
Flat
Hz
60 Hz
Motor Service Factor
1.00
Application
Fans and Blowers
Voltage Compatibility
115, 120, 115/208-230, 115/230, 120/240
Motor Frame Material
Steel
Extended Thru-Bolts
No
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Weight
11 lb
Duty Cycle
Continuous
Number of Speeds
3

Description

Room Air Conditioner Motor, Permanent Split Capacitor, 1/15 HP, RPM Range 1001-1100, No. of Speeds 3, Voltage 115, CWLE Motor Shaft Rotation, 42Y Frame, Open Air-Over, Cradle Base Motor Mounting Type, Shaft Dia. 1/2 in, Shaft Length 10 7/8 in and 10 15/16 in, Motor Thermal Protection Auto, 1100 Nameplate RPM, 1 Phase, Sleeve Motor Bearings, Capacitor Required 2MDV4, Ins. Class B, Motor Service Factor 1.00, Continuous, 60 Hz, Full Load Amps 0.80, Max. Ambient Temp. 40 Degrees C, Body Dia. 5 in
