  11. Motor, 1/15 HP, OEM Replacement Brand: Broan Replacement For: 99080238
This item is Discontinued.

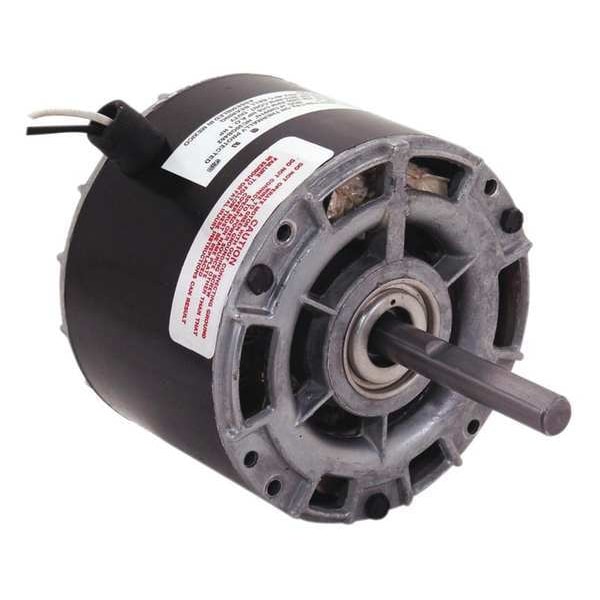

Century Motor, 1/15 HP, OEM Replacement Brand: Broan Replacement For: 99080238 OBR40066

Motor, 1/15 HP, OEM Replacement Brand: Broan Replacement For: 99080238 (Discontinued)

  • Mfr # OBR40066
  • Zoro # G0960827
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
OBR40066
Zoro #
G0960827
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2"
Shaft Length
3"
Length Less Shaft
4 1/2 in
Body Dia.
5.7"
Manufacturers Warranty Length
1 yr.
Overall Length
7-1/2"

Details

Frame
42Y
HP
1/15 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Shaded Pole
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Round Belly Band
Motor Shaft Rotation
Counterclockwise Lead End
Motor Sub Application
Direct Drive Fan/Blower
Motor Thermal Protection
Automatic
Nameplate RPM
950 rpm
No. of Speeds
1
Number of Shafts
1
OEM Replacement Brand
Broan
Phase
1
RPM Range
0-1000
Voltage
115V
Motor Bearings
Sleeve
Replacement For
99080238
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Duty
Air Over
Full Load Amps
3A
Capacitor Required
No
Standards
UL Recognized, CSA Certified
Motor Shaft Design
Flat
Hz
60 Hz
Motor Service Factor
1.00
Application
Fans and Blowers
Voltage Compatibility
115V AC, 120V AC
Usable @ 208V
No
Usable @ 200V
No
Motor Mounting Position
Horizontal
Weight
6 lb
Motor Frame Material
Steel
Rotation
CCWLE

Description

Direct Drive Motor, Single Phase, Motor Design Shaded Pole, 1/15 HP, Nameplate RPM 950, No. of Speeds 1, Voltage 115V AC, Full Load Amps 3.0 A, 42Y Frame, OEM Replacement Brand Broan, Replacement For 99080238, Usable @ 208V No, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Open Air-Over, Motor Mounting Type Band, Motor Mounting Position Horizontal
