  11. Motor, 1/2 HP, OEM Replacement Brand: Carrier/BDP Replacement For: 5KCP37PG361S
This item is Discontinued.

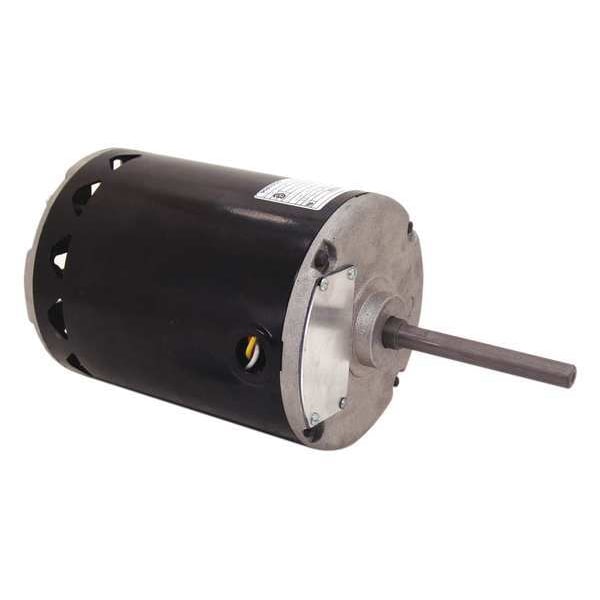

Century Motor, 1/2 HP, OEM Replacement Brand: Carrier/BDP Replacement For: 5KCP37PG361S OCD1056

Motor, 1/2 HP, OEM Replacement Brand: Carrier/BDP Replacement For: 5KCP37PG361S (Discontinued)

  • Mfr # OCD1056
  • Zoro # G0943747
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
OCD1056
Zoro #
G0943747
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2"
Shaft Length
4.4"
Length Less Shaft
8 1/4 in
Body Dia.
5.7"
Manufacturers Warranty Length
1 yr.
Overall Length
12-1/4"

Details

Frame
48Y
HP
1/2 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Round Belly Band
Motor Shaft Rotation
Clockwise Lead End
Motor Sub Application
Condenser Fan
Motor Thermal Protection
Automatic
Nameplate RPM
1075 rpm
No. of Speeds
1
Number of Shafts
1
OEM Replacement Brand
Carrier/BDP
Phase
1
RPM Range
1001-1100
Voltage
208-230V
Motor Bearings
Ball
Replacement For
5KCP37PG361S
Ins. Class
B
Max. Ambient Temp.
60 Degrees C
Duty
Air Over
Full Load Amps
4A
Capacitor Required
2MDV6
Standards
UL Recognized, CSA Certified
Motor Shaft Design
Flat
Hz
60 Hz
Motor Service Factor
1.00
Application
Carrier/BDP
Voltage Compatibility
115/208-230V AC, 208-230V AC, 208-240V AC
Weight
19 lb
Motor Mounting Position
Vertical Shaft Up
Usable @ 208V
Yes
Motor Frame Material
Steel
Usable @ 200V
No
Rotation
CWLE
Mounting
Band
Number of Speeds
1

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 HP, Nameplate RPM 1,075, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 4.0 A, 48Y Frame, OEM Replacement Brand Carrier/BDP, Replacement For 5KCP37PG361S, Usable @ 208V Yes, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CWLE, Motor Enclosure Design Open Air-Over, Motor Mounting Type Band
