  11. Motor, 1/3 HP, OEM Replacement Brand: Arcoaire Replacement For: 24346301
This item is Discontinued.

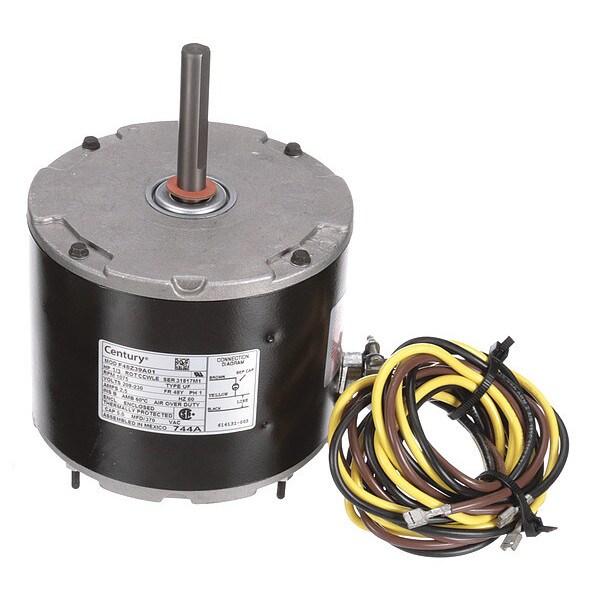

Century Motor, 1/3 HP, OEM Replacement Brand: Arcoaire Replacement For: 24346301 744A

Motor, 1/3 HP, OEM Replacement Brand: Arcoaire Replacement For: 24346301 (Discontinued)

  • Mfr # 744A
  • Zoro # G2033696
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
744A
Zoro #
G2033696
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2"
Shaft Length
2.77"
Length Less Shaft
5 in
Body Dia.
5.7"
Manufacturers Warranty Length
1 yr.
Overall Length
7.74"

Details

Frame
48Y
HP
1/3 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Totally Enclosed
Motor Mounting Type
Round Belly Band
Motor Shaft Rotation
Counterclockwise Lead End
Motor Sub Application
Direct Drive Fan/Blower
Motor Thermal Protection
Automatic
Nameplate RPM
1075 rpm
No. of Speeds
1
Number of Shafts
1
OEM Replacement Brand
Arcoaire
Phase
1
RPM Range
1001-1100
Voltage
208-230V
Motor Bearings
Sleeve
Replacement For
24346301
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Duty
Air Over
Full Load Amps
2.5A
Capacitor Required
2MDV4
Standards
UL Recognized, CSA Certified
Motor Shaft Design
Double Flat
Hz
60 Hz
Motor Service Factor
1.00
Application
Fans and Blowers
Voltage Compatibility
115/208-230V AC, 208-230V AC, 208-240V AC
Usable @ 200V
No
Extended Thru-Bolts
No
Weight
13 lb
Motor Frame Material
Steel
Usable @ 208V
Yes

Description

Direct Drive Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 HP, Nameplate RPM 1,075, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 2.5 A, 48Y Frame, OEM Replacement Brand Arcoaire, Replacement For 24346301, Usable @ 208V Yes, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud
