  11. Motor, 1/4 HP, OEM Replacement Brand: Kramer Trenton Replacement For: 5KCP35KG144S

This item is Discontinued.

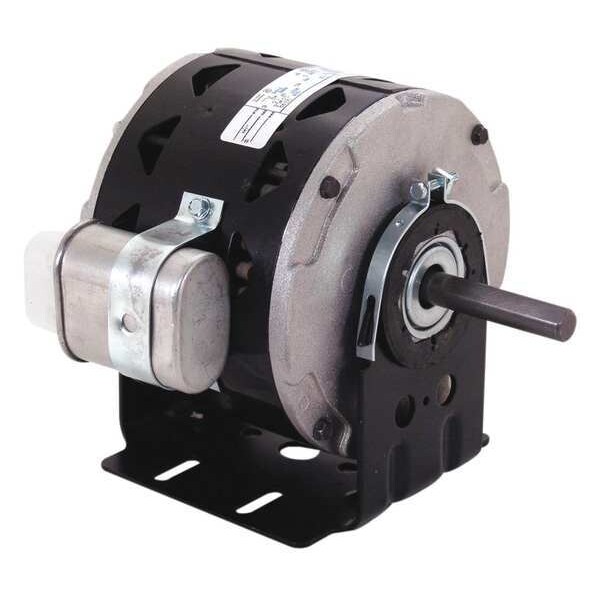

Century Motor, 1/4 HP, OEM Replacement Brand: Kramer Trenton Replacement For: 5KCP35KG144S OKT1026

Motor, 1/4 HP, OEM Replacement Brand: Kramer Trenton Replacement For: 5KCP35KG144S (Discontinued)

  • Mfr # OKT1026
  • Zoro # G1605992
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
OKT1026
Zoro #
G1605992
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2"
Shaft Length
2-1/2"
Length Less Shaft
5 7/16 in
Body Dia.
5.7"
Manufacturers Warranty Length
1 yr.
Overall Length
7.66"

Details

Frame
48Y
HP
1/4 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Semi Enclosed
Motor Mounting Type
Resilient Base
Motor Shaft Rotation
Counterclockwise Lead End
Motor Sub Application
Condenser Fan Motor
Motor Thermal Protection
Automatic
Nameplate RPM
1075/900 rpm
No. of Speeds
1
Number of Shafts
1
OEM Replacement Brand
Kramer Trenton
Phase
1
RPM Range
1001-1100
Voltage
115/208-230V
Motor Bearings
Ball
Replacement For
5KCP35KG144S
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Duty
Air Over
Full Load Amps
3.0/1.5A
Capacitor Required
Included
Standards
UL Recognized, CSA Certified
Motor Shaft Design
Flat
Hz
60 Hz
Motor Service Factor
1.00
Application
Condenser Fan
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC, 208-230V AC, 208-240V AC, 208V AC, 230V AC, 240V AC
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Usable @ 200V
No
Usable @ 208V
Yes
Weight
16 lb
Conduit Box Position
F2
Rotation
CCWLE
Mounting
Cradle Base
Number of Speeds
1

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 HP, Nameplate RPM 1,075, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 3.0/1.5 A, 48Y Frame, OEM Replacement Brand Kramer Trenton, Replacement For 5KCP35KG144S, Usable @ 208V Yes, Usable @ 200V No, 60/50 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 104 Degrees F, Motor Shaft Rotation CCWLE, Motor Enclosure Design Totally Enclosed Air-Over
