  11. Motor, 1/4 HP, OEM Replacement Brand: Trane Replacement For: 3D146983P01
This item is Discontinued.

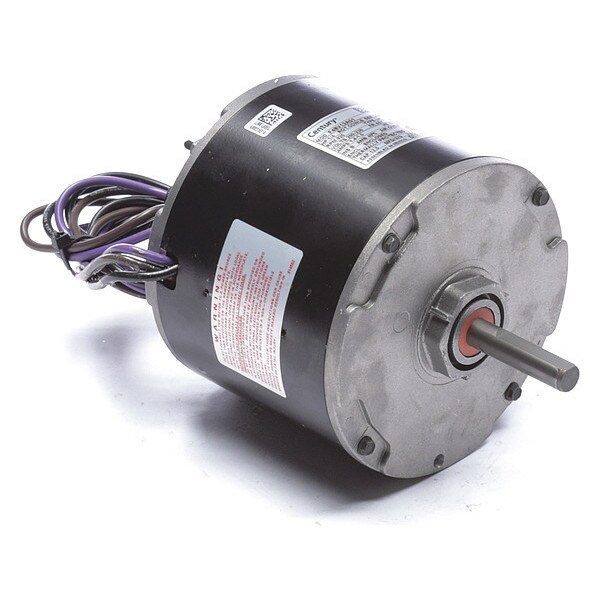

Century Motor, 1/4 HP, OEM Replacement Brand: Trane Replacement For: 3D146983P01 OTR1028

Motor, 1/4 HP, OEM Replacement Brand: Trane Replacement For: 3D146983P01 (Discontinued)

  • Mfr # OTR1028
  • Zoro # G2073032
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
OTR1028
Zoro #
G2073032
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2"
Shaft Length
2"
Length Less Shaft
5 3/8 in
Bolt Circle Dia.
5-3/16"
Body Dia.
5.7"
Manufacturers Warranty Length
1 yr.
Overall Length
7-1/8"
Stud Size
#8-32

Details

Frame
48Y
HP
1/4 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Totally Enclosed
Motor Mounting Type
Extended Studs
Motor Shaft Rotation
Counterclockwise Lead End
Motor Sub Application
Condenser Fan Motor
Motor Thermal Protection
Automatic
Nameplate RPM
825 rpm
No. of Speeds
1
Number of Shafts
1
OEM Replacement Brand
Trane
Phase
1
RPM Range
0-1000
Voltage
200-230V
Motor Bearings
Ball
Replacement For
3D146983P01
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Duty
Air Over
Full Load Amps
1.4-1.5A
Capacitor Required
2MDV8
Standards
UL Recognized, CSA Certified
Motor Shaft Design
Flat
Hz
60 Hz
Motor Service Factor
1.00
Application
Condenser Fan
Mounting Stud Pattern
3-5/8" x 3-5/8"
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 200-230V AC, 200V AC, 208-230V AC, 208-240V AC, 208V AC
Motor Frame Material
Steel
Weight
14 lb
Motor Mounting Position
Vertical Shaft Down
Usable @ 200V
Yes
Usable @ 208V
Yes
Rotation
CCWLE
Mounting
Stud
Number of Speeds
1

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 HP, Nameplate RPM 825, No. of Speeds 1, Voltage 200-230V AC, Full Load Amps 1.4-1.5 A, 48Y Frame, OEM Replacement Brand Trane, Replacement For 3D146983P01, Usable @ 208V Yes, Usable @ 200V Yes, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 104 Degrees F, Motor Shaft Rotation CCWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud
