  11. Motor, 1/5 to 1/8 HP, OEM Replacement Brand: Rheem/Ruud Replacement For: 82673
This item is Discontinued.

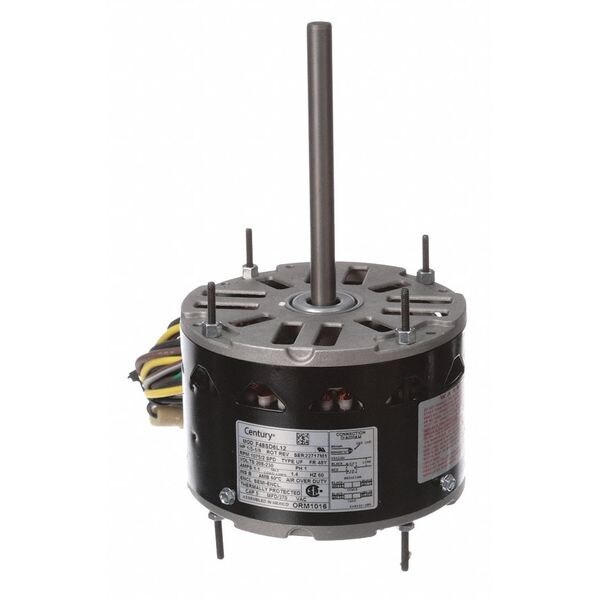

Century Motor, 1/5 to 1/8 HP, OEM Replacement Brand: Rheem/Ruud Replacement For: 82673 ORM1016

Motor, 1/5 to 1/8 HP, OEM Replacement Brand: Rheem/Ruud Replacement For: 82673 (Discontinued)

  • Mfr # ORM1016
  • Zoro # G2191901
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ORM1016
Zoro #
G2191901
UPC #
00076335508153
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2"
Shaft Length
5-1/2"
Length Less Shaft
4 7/16 in
Bolt Circle Dia.
5-3/16"
Body Dia.
5.7"
Manufacturers Warranty Length
1 yr.
Overall Length
9-1/4"
Stud Size
#8-32

Details

Frame
48Y
HP
1/5 to 1/8 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Extended Studs
Motor Shaft Rotation
Reversible
Motor Sub Application
Condenser Fan Motor
Motor Thermal Protection
Automatic
Nameplate RPM
1075 rpm
No. of Speeds
2
Number of Shafts
1
OEM Replacement Brand
Rheem/Ruud
Phase
1
RPM Range
1001-1100
Voltage
208-230V
Motor Bearings
Sleeve
Replacement For
82673
Ins. Class
B
Max. Ambient Temp.
60 Degrees C
Duty
Air Over
Full Load Amps
1.1A
Capacitor Required
2MDV4
Standards
UL Recognized, CSA Certified
Motor Shaft Design
Double Flat
Hz
60 Hz
Motor Service Factor
1.00
Application
Condenser Fan
Mounting Stud Pattern
3-5/8" x 3-5/8"
Voltage Compatibility
115/208-230V AC, 208-230V AC, 208-240V AC
Weight
10 lb
Motor Mounting Position
Vertical Shaft Down
Usable @ 208V
Yes
Motor Frame Material
Steel
Usable @ 200V
No
Rotation
CW/CCW

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/5 HP, Nameplate RPM 1,075, No. of Speeds 2, Voltage 208-230V AC, Full Load Amps 1.1 A, 48Y Frame, OEM Replacement Brand Rheem/Ruud, Replacement For 82673, Usable @ 208V Yes, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air-Over, Motor Mounting Type Stud
