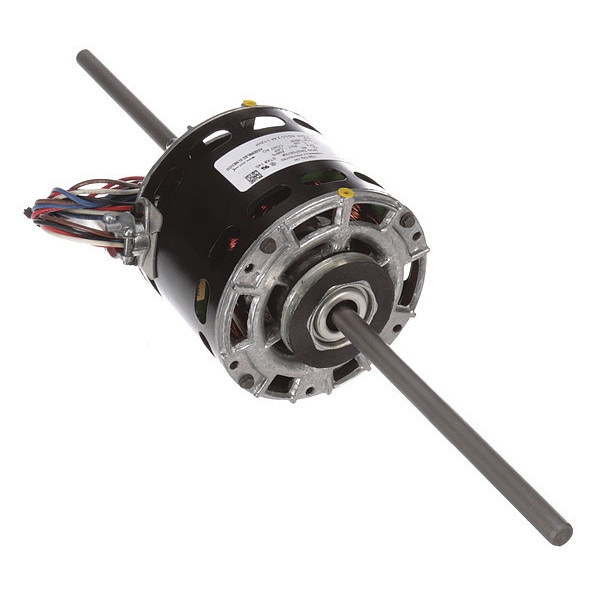

Motor, 1/6, 1/8, 1/10, 1/12 HP, OEM Replacement Brand: First Co./Summit Replacement For: M3 (Discontinued)
- Mfr # 745
- Zoro # G2455881
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
745
Zoro #
G2455881
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Dia.
1/2"
Shaft Length
7-5/8"
Length Less Shaft
4 1/4 in
Body Dia.
5"
Manufacturers Warranty Length
1 yr.
Overall Length
19-1/2"
Description
Direct Drive Motor, Single Phase, Motor Design Shaded Pole, 1/12, 1/6 HP, Nameplate RPM 1,550, No. of Speeds 4, Voltage 115V AC, Full Load Amps 5.0/3.3/2.9/2.4 A, 42 Frame, OEM Replacement Brand First Co./Summit, Replacement For M3, Usable @ 208V No, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CCWSE, Motor Enclosure Design Open Air-Over, Motor Mounting Type Ring
