  11. Motor, 1/6 HP, OEM Replacement Brand: Copeland Replacement For: 6128
This item is Discontinued.

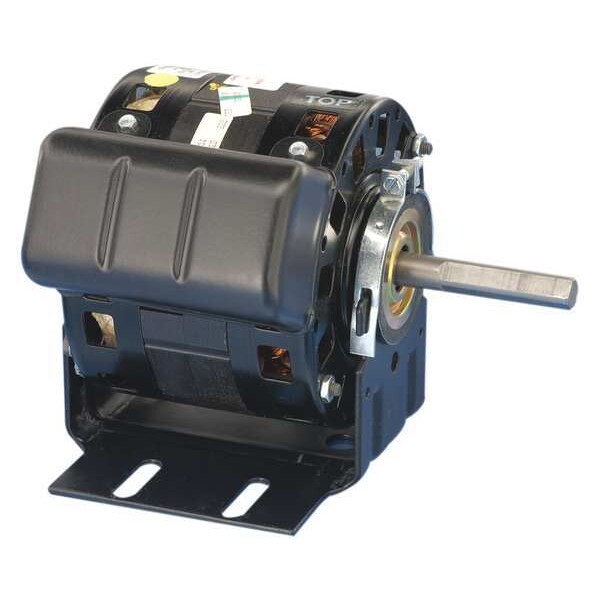

Century Motor, 1/6 HP, OEM Replacement Brand: Copeland Replacement For: 6128 OCP0251

Motor, 1/6 HP, OEM Replacement Brand: Copeland Replacement For: 6128 (Discontinued)

  • Mfr # OCP0251
  • Zoro # G1911077
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
OCP0251
Zoro #
G1911077
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2"
Shaft Length
3"
Length Less Shaft
4 15/16 in
Body Dia.
5"
Manufacturers Warranty Length
1 yr.
Overall Length
7.42"

Details

Frame
42Y
HP
1/6 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Enclosed
Motor Mounting Type
Resilient Base
Motor Shaft Rotation
Clockwise Lead End
Motor Sub Application
Condenser Fan Motor
Motor Thermal Protection
Automatic
Nameplate RPM
1625 rpm
No. of Speeds
1
Number of Shafts
1
OEM Replacement Brand
Copeland
Phase
1
RPM Range
1601-1700
Voltage
230V
Motor Bearings
Sleeve
Replacement For
6128
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Duty
Air Over
Full Load Amps
1.5A
Capacitor Required
Included
Standards
UL Recognized, CSA Certified
Motor Shaft Design
Double Flat
Hz
60 Hz
Motor Service Factor
1.00
Application
Condenser Fan
Voltage Compatibility
115/230V AC, 120/240V AC, 230V AC, 240V AC
Usable @ 200V
No
Motor Mounting Position
Horizontal
Usable @ 208V
No
Conduit Box Position
F1
Weight
18 lb
Rotation
CWLE
Mounting
Cradle Base
Number of Speeds
1

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/6 HP, Nameplate RPM 1,625, No. of Speeds 1, Voltage 230V AC, Full Load Amps 1.5 A, 42Y Frame, OEM Replacement Brand Copeland, Replacement For 6128, Usable @ 208V No, Usable @ 200V No, 60/50 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 104 Degrees F, Motor Shaft Rotation CWLE, Motor Enclosure Design Open Air-Over, Motor Mounting Type Cradle Base
