  11. Motor, 1/8 HP, OEM Replacement Brand: Trane Replacement For: 5KSP29DK1728S
This item is Discontinued.

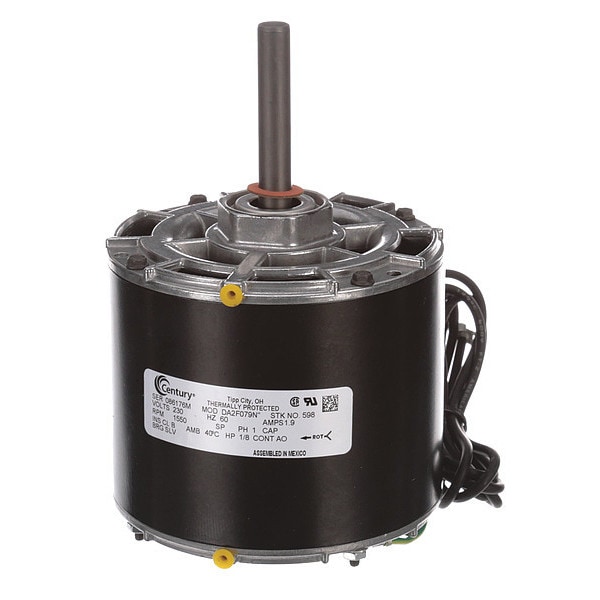

Century Motor, 1/8 HP, OEM Replacement Brand: Trane Replacement For: 5KSP29DK1728S 598

Motor, 1/8 HP, OEM Replacement Brand: Trane Replacement For: 5KSP29DK1728S (Discontinued)

  • Mfr # 598
  • Zoro # G2468076
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
598
Zoro #
G2468076
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2"
Shaft Length
3"
Length Less Shaft
4 3/4 in
Body Dia.
5"
Manufacturers Warranty Length
1 yr.
Overall Length
7.8"

Details

Frame
42Y
HP
1/8 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Shaded Pole
Motor Enclosure Design
Semi Enclosed
Motor Mounting Type
Resilient Rings
Motor Shaft Rotation
Clockwise Shaft End
Motor Sub Application
Condenser Fan Motor
Motor Thermal Protection
Automatic
Nameplate RPM
1550 rpm
No. of Speeds
1
Number of Shafts
1
OEM Replacement Brand
Trane
Phase
1
RPM Range
1501-1600
Voltage
230V
Motor Bearings
Sleeve
Replacement For
5KSP29DK1728S
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Duty
Continuous Air Over
Full Load Amps
1.9A
Capacitor Required
No
Standards
UL Recognized, CSA Certified
Motor Shaft Design
Flat
Hz
60 Hz
Motor Service Factor
1.00
Application
Condenser Fan
Voltage Compatibility
115/230V AC, 120/240V AC, 230V AC, 240V AC
Motor Mounting Position
Horizontal
Motor Frame Material
Steel
Usable @ 200V
No
Duty Cycle
Continuous
Usable @ 208V
No
Weight
9 lb
Rotation
CWSE
Mounting
Ring
Number of Speeds
1

Description

Condenser Fan Motor, Single Phase, Motor Design Shaded Pole, 1/8 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 230V AC, Full Load Amps 1.9 A, 42Y Frame, OEM Replacement Brand Trane, Replacement For 5KSP29DK1728S, Usable @ 208V No, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air-Over, Motor Mounting Type Band
