  11. Motor, PSC, 1/10 HP, 1075 RPM, 115V, 42Y, OAO

This item is Discontinued.

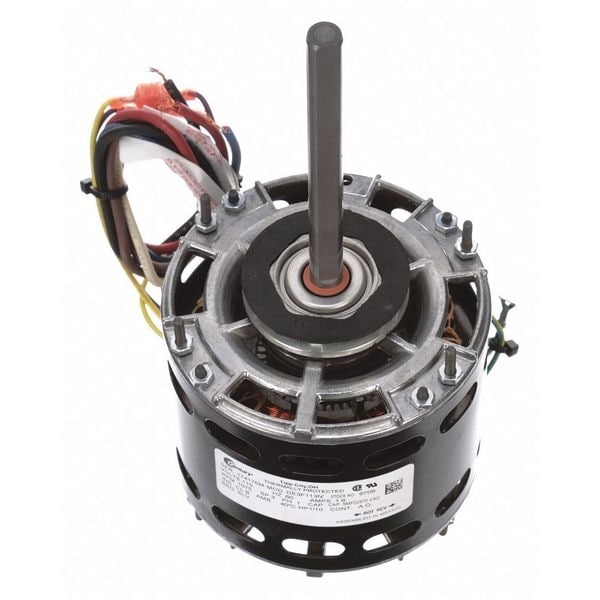

Century Motor, PSC, 1/10 HP, 1075 RPM, 115V, 42Y, OAO 9709

Motor, PSC, 1/10 HP, 1075 RPM, 115V, 42Y, OAO (Discontinued)

  • Mfr # 9709
  • Zoro # G2856235
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9709
Zoro #
G2856235
UPC #
-
Country of Origin
Mexico

Dimensions

Bolt Circle Dia.
4 5/8 in
Body Dia.
5 in
Length Less Shaft
5 3/16 in
Resilient Ring Dia.
2 1/2 in
Shaft Length
5 13/16 in
Stud Size
#8-32
Shaft Dia.
1/2 in
Overall Length
10 15/16 in
Lead Length
13 in

Details

Motor Bearings
Sleeve
Application
Blowers, Fans and Air Circulators
Motor Enclosure Design
Open Air-Over
Motor Sub Application
Room Air Conditioner
Motor Mounting Position
Horizontal
Frame
42Y
Motor Application
HVAC/R
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Capacitor Required
2MDV4
Phase
Single
Max. Ambient Temp.
40 Degrees C
Motor Design
Permanent Split Capacitor
Hz
60 Hz
Mounting Stud Location
Both Ends
Voltage
115V AC
Motor Shaft Design
Flat
Ins. Class
B
Duty
Continuous
Motor Thermal Protection
Auto
RPM Range
1,001-1,100
No. of Speeds
3
Standards
CSA Certified, UL Recognized
Motor Mounting Type
Ring
HP
1/10
Mounting Stud Pattern
2-5/16 in x 4 in
Ring to Ring Center
4 13/16 in
Motor Service Factor
1
Full Load Amps
1.06 A
Nameplate RPM
1,075
Includes
Resilient Mounting Ring
Item
Room Air Conditioner Motor
Motor Shaft Rotation
CW/CCW
Mounting Holes
4
Stud Quantity
4
Weight
9 lb
Number of Shafts
1
Motor Frame Material
Steel
Usable @ 208V
No
Usable @ 200V
No
Number of Speeds
3
Mounting
Ring

Description

Room Air Conditioner Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/10 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 3, Voltage 115V AC, 1.06 A Full Load Amps, 42Y Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Resilient Ring, Motor Frame Material Steel
