  11. Motor, PSC, 1/10 HP, 1075 RPM, 230V, 42Y, OAO

This item is Discontinued.

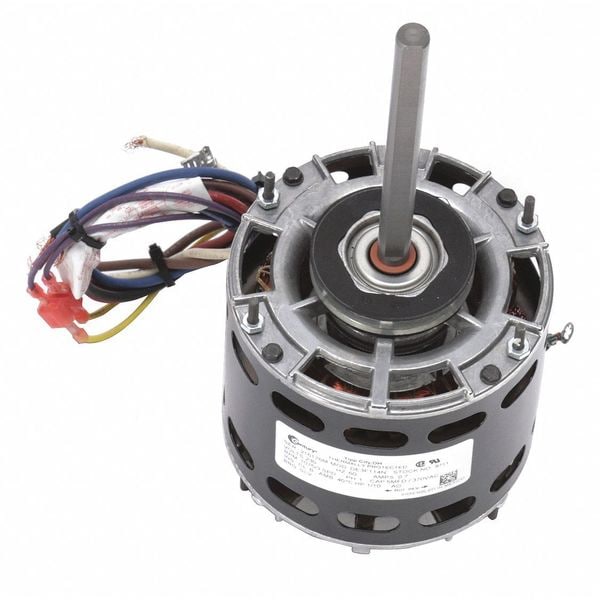

Century Motor, PSC, 1/10 HP, 1075 RPM, 230V, 42Y, OAO 9711

Motor, PSC, 1/10 HP, 1075 RPM, 230V, 42Y, OAO (Discontinued)

  • Mfr # 9711
  • Zoro # G0786387
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9711
Zoro #
G0786387
UPC #
-
Country of Origin
Mexico

Dimensions

Body Dia.
5 in
Resilient Ring Dia.
2 1/2 in
Shaft Length
5 13/16 in
Shaft Dia.
1/2 in
Stud Size
#8-32
Length Less Shaft
5 3/16 in
Bolt Circle Dia.
4 5/8 in
Overall Length
10 1/2 in
Lead Length
13 in

Details

Nameplate RPM
1,075
Ins. Class
B
Application
Blowers, Fans and Air Circulators
RPM Range
1,001-1,100
Ring to Ring Center
4 13/16 in
Motor Bearings
Sleeve
Includes
Resilient Mounting Ring
Motor Thermal Protection
Auto
Mounting Stud Pattern
2-5/16 in x 4 in
Motor Shaft Design
Flat
No. of Speeds
3
HP
1/10
Voltage
230V AC
Phase
Single
Mounting Stud Location
Both Ends
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Room Air Conditioner
Motor Service Factor
1
Max. Ambient Temp.
40 Degrees C
Motor Mounting Position
Horizontal
Hz
50 Hz
Standards
CSA Certified, UL Recognized
Motor Enclosure Design
Open Air-Over
Capacitor Required
2MDV4
Item
Room Air Conditioner Motor
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Motor Design
Permanent Split Capacitor
Duty
Continuous
Full Load Amps
0.7 A
Motor Application
HVAC/R
Motor Mounting Type
Ring
Frame
42Y
Number of Shafts
1
Weight
9 lb
Motor Frame Material
Steel
Full Load Amps @ 50Hz
0.70 A
Stud Quantity
4
Mounting Holes
4
RPM @ 50Hz
1,075 RPM
HP @ 50Hz
1/10
Service Factor @ 50Hz
1
Voltage @ 50Hz
230V AC
Usable @ 208V
No
Usable @ 200V
No
Mounting
Ring
Number of Speeds
3

Description

Room Air Conditioner Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/10 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 3, Voltage 230V AC, 0.70 A Full Load Amps, 42Y Frame, 60/50 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Resilient Ring, Motor Frame Material Steel
