  11. Motor, PSC, 1/10 HP, 1625 RPM, 115V, 42Y, OAO
This item is Discontinued.

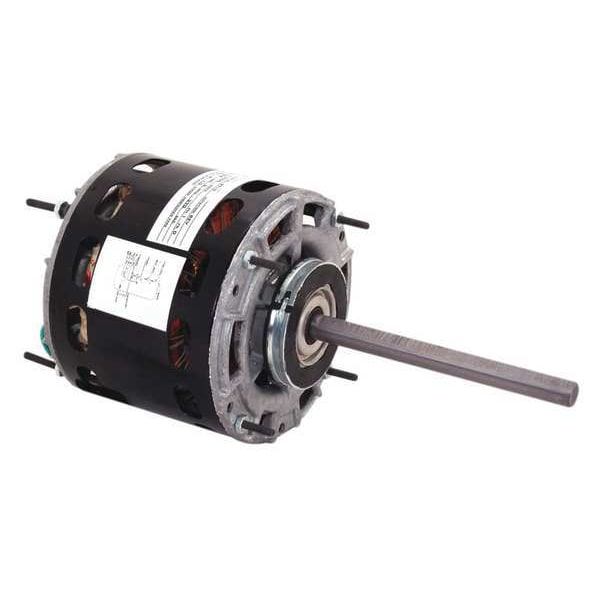

Century Motor, PSC, 1/10 HP, 1625 RPM, 115V, 42Y, OAO 9708

Motor, PSC, 1/10 HP, 1625 RPM, 115V, 42Y, OAO (Discontinued)

  • Mfr # 9708
  • Zoro # G2018721
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9708
Zoro #
G2018721
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
5 3/16 in
Stud Size
#8-32
Bolt Circle Dia.
4 5/8 in
Resilient Ring Dia.
2 1/2 in
Shaft Dia.
1/2 in
Shaft Length
5 13/16 in
Body Dia.
5 in
Lead Length
13 in
Overall Length
7 3/4 in

Details

Item
Room Air Conditioner Motor
Includes
Resilient Mounting Ring
Motor Enclosure Design
Open Air-Over
Motor Thermal Protection
Auto
Motor Bearings
Sleeve
Motor Service Factor
1
Motor Sub Application
Room Air Conditioner
Motor Shaft Rotation
CW/CCW
Motor Design
Permanent Split Capacitor
Motor Mounting Type
Ring
Phase
Single
HP
1/10
Voltage
115V AC
Frame
42Y
Capacitor Required
2MDV4
Full Load Amps
2.01 A
Ring to Ring Center
4 13/16 in
Motor Application
HVAC/R
Ins. Class
B
Nameplate RPM
1,625
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Mounting Stud Pattern
3-1/4 in x 3-1/4 in
No. of Speeds
3
Standards
CSA Certified, UL Recognized
Mounting Stud Location
Both Ends
Motor Shaft Design
Flat
Motor Mounting Position
Horizontal
Duty
Continuous
RPM Range
1,601-1,700
Max. Ambient Temp.
40 Degrees C
Hz
60 Hz
Application
Blowers, Fans and Air Circulators
Number of Shafts
1
Voltage @ 50Hz
115V AC
Service Factor @ 50Hz
1
Usable @ 200V
No
Weight
11 lb
Stud Quantity
4
HP @ 50Hz
1/10
Mounting Holes
4
Usable @ 208V
No
RPM @ 50Hz
1,625 RPM
Full Load Amps @ 50Hz
2.1 A
Motor Frame Material
Steel
Number of Speeds
3
Mounting
Stud

Description

Room Air Conditioner Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/10 hp HP, Nameplate RPM 1,625 RPM, No. of Speeds 3, Voltage 115V AC, 2.01 A Full Load Amps, 42Y Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Resilient Ring, Motor Frame Material Steel
