This item is Discontinued.

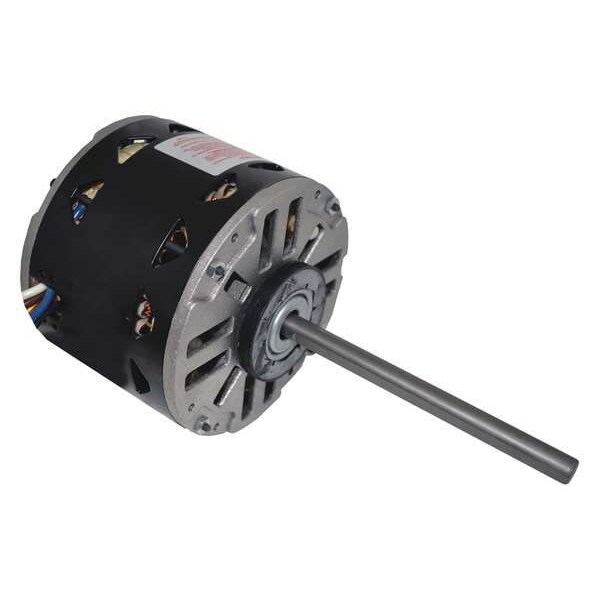

Century Motor, PSC, 1/4 HP, 1050 RPM, 115V, 48Y, OAO 144A

This item is Discontinued.

Century

Motor, PSC, 1/4 HP, 1050 RPM, 115V, 48Y, OAO (Discontinued)

Mfr # 144A
Zoro # G0643011
Country of Origin Mexico
Category Permanent Split Capacitor Blower Motors
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
144A
Zoro #
G0643011
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Length
11 1/4 in
Body Dia.
5 5/8 in
Length Less Shaft
5 5/16 in
Shaft Length
6 1/2 in
Manufacturers Warranty Length
1 yr
Resilient Ring Dia.
2 1/2 in
Shaft Dia.
1/2 in
Lead Length
36 1/2 in
Shaft Diameter
1/2 in
Body Diameter
5.6 in
Resilient Ring Diameter
2 1/2 in
Frame Size
48Y

Details

Motor Sub Application
Direct Drive Fan/Blower
No. of Speeds
4
Hz
60 Hz
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Motor Mounting Type
Ring
Ins. Class
B
RPM Range
1,001-1,100
HP
1/4, 1/5, 1/6, 1/8
Application
Blowers, Fans and Air Circulators
Motor Service Factor
1
Max. Ambient Temp.
40 Degrees C
Item
Fan and Blower Motor
Full Load Amps
3.2, 2.5, 2.0, 1.6 A
Motor Design
Permanent Split Capacitor
Frame
48Y
Nameplate RPM
1,050
Motor Shaft Design
Flat
Motor Shaft Rotation
CCWLE
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Bearings
Sleeve
Motor Mounting Position
Horizontal
Capacitor Required
2MDV4
Ring to Ring Center
4 13/16 in
Standards
CSA (LR43341/LE12645), UL (E46412/E49807)
Motor Thermal Protection
Auto
Includes
Resilient Mounting Ring
Motor Enclosure Design
Open Air-Over
Motor Application
HVAC/R
Duty
Continuous
Voltage
115V AC
Phase
Single
Usable @ 208V
Not Usable at 208V
Motor Frame Material
Steel
Weight
11 lb
Mounting Holes
4
Stud Quantity
4
Number of Shafts
1
Usable @ 200V
Not Usable at 200V
Number of Speeds
4
Mounting
Ring
Insulation Class
B
Motor Enclosure Type
Open Air Over
Manufacturers Warranty
1 yr
Bearing Type
Sleeve
Frame Material
Steel
Nameplate Service Factor @ 60 Hz
1
Shaft Design
Flat
Sub Application
General Purpose
Product Type
Fan and Blower Motor
Drive Type
Direct Drive
Full Load Current @ 60 Hz
3.2, 2.5, 2.0, 1.6 A
Frequency
60 Hz
Ambient Temperature - Maximum
40 Degrees C

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp, 1/5 hp, 1/6 hp, 1/8 hp HP, Nameplate RPM 1,050 RPM, No. of Speeds 4, Voltage 115V AC, 3.2, 2.5, 2.0, 1.6 A Full Load Amps, 48Y Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Open Air Over, Motor Mounting Type Resilient Ring
