  11. Motor, PSC, 1/4 HP, 1075 RPM, 115V, 42Y, OAO

This item is Discontinued.

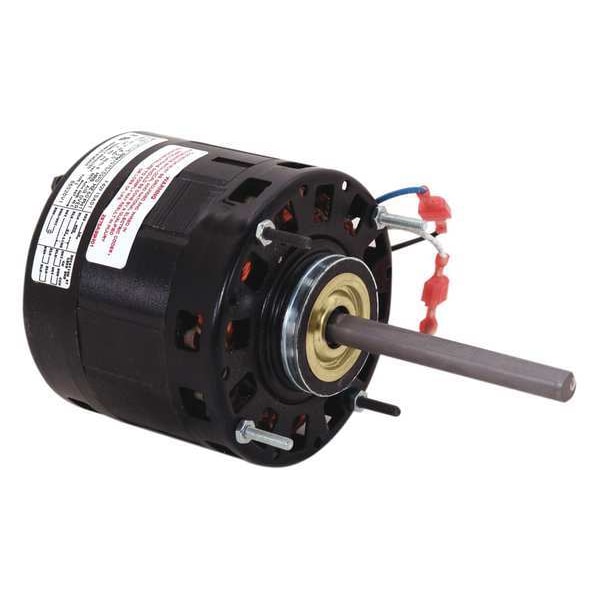

Century Motor, PSC, 1/4 HP, 1075 RPM, 115V, 42Y, OAO BL6519V1

Motor, PSC, 1/4 HP, 1075 RPM, 115V, 42Y, OAO (Discontinued)

  • Mfr # BL6519V1
  • Zoro # G3243563
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BL6519V1
Zoro #
G3243563
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Resilient Ring Dia.
2 1/4 in
Body Dia.
5 in
Stud Size
#8-32
Shaft Length
4 11/16 in
Length Less Shaft
5 3/16 in
Lead Length
28 in
Overall Length
9 5/16 in

Details

Capacitor Required
2MDV4
Duty
Continuous
Voltage
115V AC
No. of Speeds
3
Hz
60 Hz
Application
Blowers, Fans and Air Circulators
Motor Mounting Position
Horizontal
Max. Ambient Temp.
40 Degrees C
Motor Bearings
Sleeve
HP
1/4
Motor Mounting Type
Ring/Stud
Motor Service Factor
1
Motor Enclosure Design
Open Air-Over
Nameplate RPM
1,075
Phase
Single
Includes
Belly Band, Resilient Mounting Ring
Full Load Amps
4.07 A
Ins. Class
B
RPM Range
1,001-1,100
Frame
42Y
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Item
Direct Drive Blower Motor
Mounting Stud Location
Shaft End
Mounting Stud Pattern
3-1/8 in x 3-1/8 in
Motor Sub Application
Direct Drive Fan/Blower
Motor Thermal Protection
Auto
Motor Application
HVAC/R
Standards
CSA Certified, UL Recognized
Motor Shaft Design
Flat
Ring to Ring Center
4 13/16 in
Motor Shaft Rotation
CW/CCW
Motor Design
Permanent Split Capacitor
Usable @ 200V
No
Usable @ 208V
No
Stud Quantity
4
Number of Shafts
1
Weight
8 lb
Mounting Holes
4
Number of Speeds
3
Mounting
Stud

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 3, Voltage 115V AC, 4.07 A Full Load Amps, 42Y Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Mounting Position Horizontal
