  11. Motor, PSC, 1/4 HP, 1100 RPM, 115V, 48Z, TEAO

This item is Discontinued.

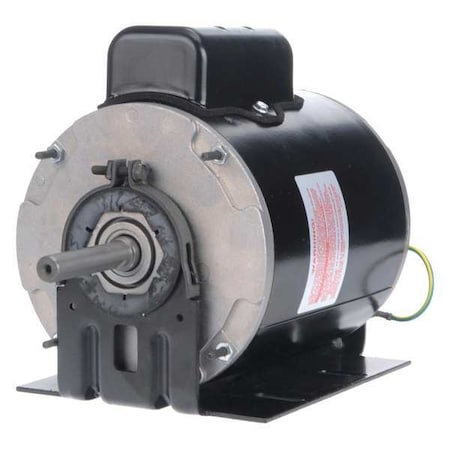

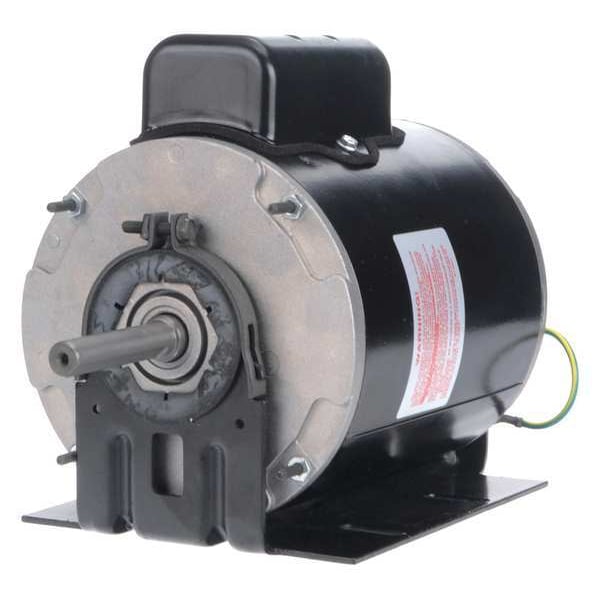

Century Motor, PSC, 1/4 HP, 1100 RPM, 115V, 48Z, TEAO C059A

Motor, PSC, 1/4 HP, 1100 RPM, 115V, 48Z, TEAO (Discontinued)

  • Mfr # C059A
  • Zoro # G3059707
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C059A
Zoro #
G3059707
UPC #
-
Country of Origin
Mexico

Dimensions

Manufacturers Warranty Length
1 yr
Mounting Stud Length
1/2 in
Body Dia.
5 5/8 in
Shaft Dia.
1/2 in
Stud Size
#8-32
Overall Length
10 1/16 in
Length Less Shaft
7 5/8 in
Bolt Circle Dia.
5 3/16 in
Resilient Ring Dia.
2 1/4 in
Shaft Length
3 in

Details

Motor Shaft Rotation
CW/CCW
Mounting Stud Pattern
3-5/8 in x 3-5/8 in
Mounting Stud Location
Shaft End
Motor Shaft Design
Flat
Motor Service Factor
1
Hz
60 Hz
Application
Blowers, Fans and Air Circulators
Standards
CSA Certified, UL Recognized
Ring to Ring Center
7 3/16 in
Motor Sub Application
Direct Drive Fan
Ins. Class
B
RPM Range
1,001-1,100
Motor Design
Permanent Split Capacitor
Frame
48Z
Duty
Continuous
HP
1/4
Phase
Single
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Full Load Amps
3 A
Includes
Resilient Base
Motor Bearings
Ball
Motor Mounting Position
Horizontal
Motor Enclosure Design
Totally Enclosed
No. of Speeds
2
Capacitor Required
Included
Nameplate RPM
1,100
Motor Mounting Type
Cradle Base
Max. Ambient Temp.
40 Degrees C
Motor Application
Farm Duty
Motor Thermal Protection
Auto
Item
Direct Drive Fan Motor
Voltage
115V AC
Usable @ 208V
No
Weight
16 lb
Mounting Holes
(4) #10-32
Number of Shafts
1
Motor Frame Material
Steel
Usable @ 200V
No
Stud Quantity
4
Mounting
Cradle Base
Number of Speeds
2

Description

Farm Duty Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,100 RPM, No. of Speeds 2, Voltage 115V AC, Full Load Amps 3 A, 48Z Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal
