Contact our U.S. based teamSpecifications
Product Information
MFR #
9642
Zoro #
G1493886
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Length
5 1/2 in
Length Less Shaft
5 3/16 in
Body Dia.
5 in
Resilient Ring Dia.
2 1/2 in
Stud Size
#8-32
Shaft Dia.
1/2 in
Description

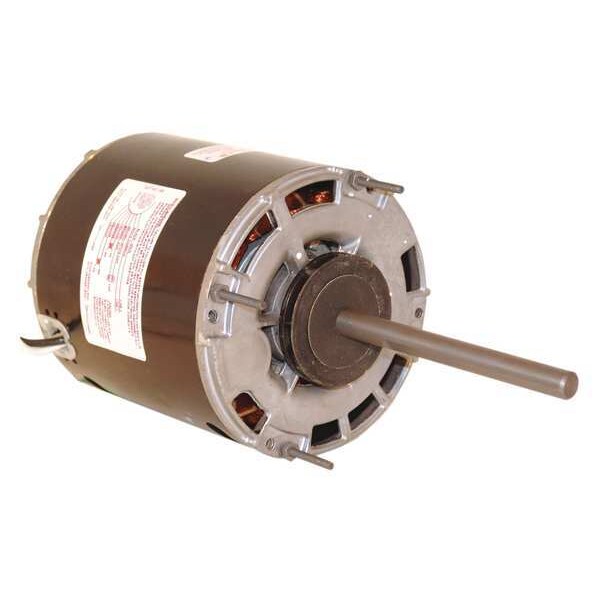

Direct Drive Blower Motor, Permanent Split Capacitor Motor Design, Open Air-Over Motor Enclosure Design, 1/5 HP, 1075 Nameplate RPM, Voltage 115, 3.3 Full Load Amps, 60 Hz, 1 Phase, 42Y Frame, Motor Service Factor 1.00, Max. Ambient Temp. 40 Degrees C, Ins. Class B, Duty Continuous, No. of Speeds 1, Motor Mounting Type Stud, Motor Mounting Position All Angle, Motor Bearings Sleeve, Motor Thermal Protection Auto, Motor Shaft Rotation CW/CCW, Length Less Shaft 5 3/16 in, Shaft Dia. 1/2 in
