  11. Motor, PSC, 1/8 HP, 1075 RPM, 115V, 42Y, OAO

This item is Discontinued.

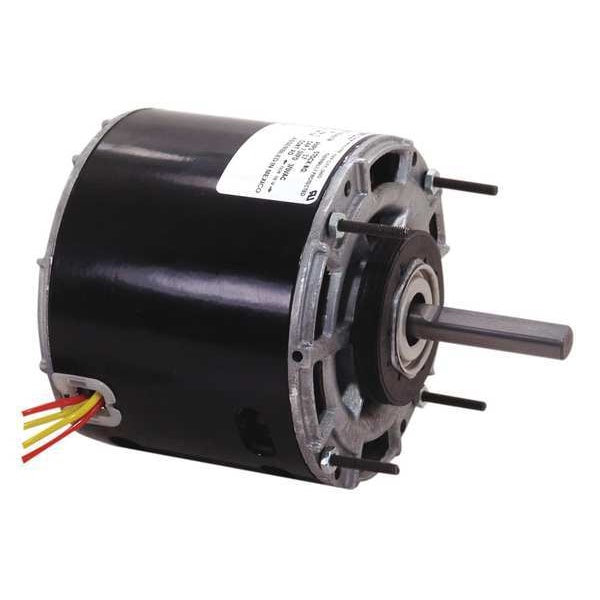

Century Motor, PSC, 1/8 HP, 1075 RPM, 115V, 42Y, OAO 9644

Motor, PSC, 1/8 HP, 1075 RPM, 115V, 42Y, OAO (Discontinued)

  • Mfr # 9644
  • Zoro # G0928207
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9644
Zoro #
G0928207
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
6 1/2 in
Resilient Ring Dia.
2 1/2 in
Stud Size
#8-32
Length Less Shaft
4 11/16 in
Body Dia.
5 in
Shaft Dia.
1/2 in
Overall Length
10 11/16 in
Lead Length
24 in

Details

Motor Enclosure Design
Open Air-Over
Motor Shaft Rotation
CW/CCW
Motor Service Factor
1
Ring to Ring Center
4 5/16 in
Motor Mounting Position
Horizontal
Hz
60 Hz
Mounting Stud Pattern
3-1/4 in x 3-1/4 in
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Item
Direct Drive Blower Motor
Nameplate RPM
1,075
Mounting Stud Location
Shaft End
Voltage
115V AC
Full Load Amps
2.5/1.6/1.3 A
Capacitor Required
2MDV4
Frame
42Y
HP
1/8
Phase
Single
Application
Blowers, Fans and Air Circulators
Duty
Continuous
Includes
Resilient Mounting Ring
Max. Ambient Temp.
40 Degrees C
Standards
CSA Certified, UL Recognized
RPM Range
1,001-1,100
Motor Sub Application
Direct Drive Fan/Blower
No. of Speeds
3
Motor Mounting Type
Ring
Ins. Class
B
Motor Bearings
Sleeve
Motor Design
Permanent Split Capacitor
Motor Application
HVAC/R
Motor Shaft Design
Flat
Motor Thermal Protection
Auto
Usable @ 200V
No
Weight
8 lb
Number of Shafts
1
Mounting Holes
4
Motor Frame Material
Steel
Usable @ 208V
No
Stud Quantity
4
Number of Speeds
3
Mounting
Stud

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/8 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 3, Voltage 115V AC, 2.5/1.6/1.3 A Full Load Amps, 42Y Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air-Over, Motor Mounting Type Resilient Ring, Motor Frame Material Steel
