  11. Motor, Sh Pole, 1/6 HP, 1550,115V, 42Y, OAO
This item is Discontinued.

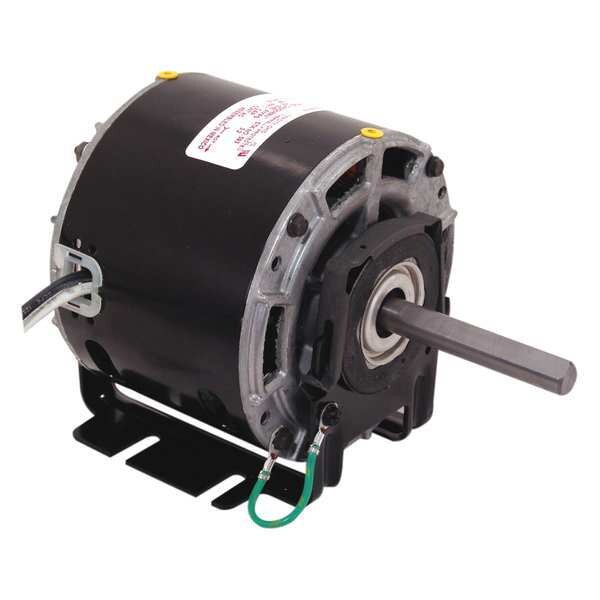

Century Motor, Sh Pole, 1/6 HP, 1550,115V, 42Y, OAO 9640

Motor, Sh Pole, 1/6 HP, 1550,115V, 42Y, OAO (Discontinued)

  • Mfr # 9640
  • Zoro # G1527924
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9640
Zoro #
G1527924
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
3 in
Length Less Shaft
4 in
Resilient Ring Dia.
2 1/2 in
Body Dia.
5 in
Shaft Dia.
1/2 in
Overall Length
7 5/16 in
Lead Length
36 in

Details

Full Load Amps
6.04 A
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Motor Design
Shaded Pole
Motor Service Factor
1
Motor Shaft Rotation
CWLE
Motor Mounting Position
Horizontal
HP
1/6
Application
Blowers, Fans and Air Circulators
No. of Speeds
1
Motor Mounting Type
Cradle Base
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Enclosure Design
Open Air-Over
Voltage
115V AC
Motor Bearings
Sleeve
Motor Application
HVAC/R
Includes
Resilient Base
Motor Shaft Design
Flat
Frame
42Y
Motor Sub Application
Direct Drive Fan/Blower
Duty
Continuous
RPM Range
1,501-1,600
Standards
CSA Certified, UL Recognized
Nameplate RPM
1,550
Motor Thermal Protection
Auto
Capacitor Required
No
Item
Direct Drive Blower Motor
Phase
Single
Hz
60 Hz
Ring to Ring Center
4 9/16 in
Usable @ 208V
No
Duty Cycle
Continuous
Motor Frame Material
Steel
Usable @ 200V
No
Stud Quantity
4
Weight
10 lb
Number of Shafts
1
Mounting Holes
4
Number of Speeds
1
Mounting
Cradle Base

Description

Direct Drive Blower Motor, Single Phase, Motor Design Shaded Pole, 1/6 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115V AC, Full Load Amps 6.04 A, 42Y Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CWLE, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Lead Length 36 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal
