  11. Motor, Sh Pole, 1/8 HP, 1050,115V, 42Y, OAO
This item is Discontinued.

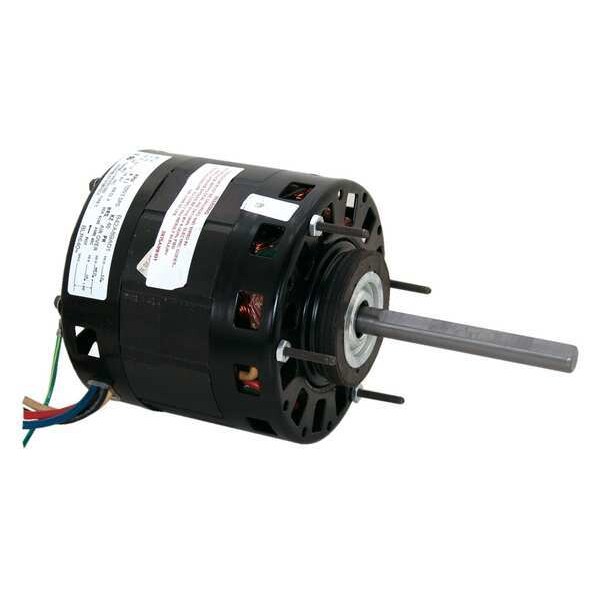

Century Motor, Sh Pole, 1/8 HP, 1050,115V, 42Y, OAO 9706

Motor, Sh Pole, 1/8 HP, 1050,115V, 42Y, OAO (Discontinued)

  • Mfr # 9706
  • Zoro # G2777311
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9706
Zoro #
G2777311
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Resilient Ring Dia.
2 1/2 in
Stud Size
#8-32
Body Dia.
5 in
Bolt Circle Dia.
4 5/8 in
Length Less Shaft
5 3/16 in
Shaft Length
4 1/2 in
Overall Length
8 3/4 in
Lead Length
26 in

Details

RPM Range
1,001-1,100
Application
Room Air Conditioners, Unit Heaters, Condensers, Furnace Blowers, A Wide Range of Other Shaft Mounted Fan and Blower Equipment
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Shaft Rotation
CCWLE
Motor Service Factor
1
Max. Ambient Temp.
40 Degrees C
Hz
60 Hz
No. of Speeds
1
Standards
CSA Certified, UL Recognized
HP
1/8
Motor Thermal Protection
Auto
Mounting Stud Pattern
2-5/16 in x 4 in
Motor Mounting Type
Ring
Voltage
115V AC
Phase
Single
Duty
Continuous
Ins. Class
B
Capacitor Required
No
Includes
Resilient Mounting Ring
Nameplate RPM
1,050
Full Load Amps
5.02 A
Motor Shaft Design
Flat
Motor Mounting Position
Horizontal
Motor Sub Application
Direct Drive Fan/Blower
Mounting Stud Location
Shaft End
Motor Application
HVAC/R
Motor Enclosure Design
Open Air-Over
Ring to Ring Center
4 13/16 in
Motor Design
Shaded Pole
Motor Bearings
Sleeve
Frame
42Y
Item
Direct Drive Blower Motor
Weight
9 lb
Usable @ 200V
No
Mounting Holes
4
Number of Shafts
1
Usable @ 208V
No
Motor Frame Material
Steel
Stud Quantity
4
Mounting
Ring
Number of Speeds
1

Description

Direct Drive Blower Motor, Single Phase, Motor Design Shaded Pole, 1/8 HP, Nameplate RPM 1,050, No. of Speeds 1, Voltage 115V AC, Full Load Amps 5.02 A, 42Y Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CCWLE, Max. Ambient Temp. 40 Degrees C, Lead Length 26 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Ring, Motor Mounting Position Horizontal, Number of Shafts 1
