This item is Discontinued.

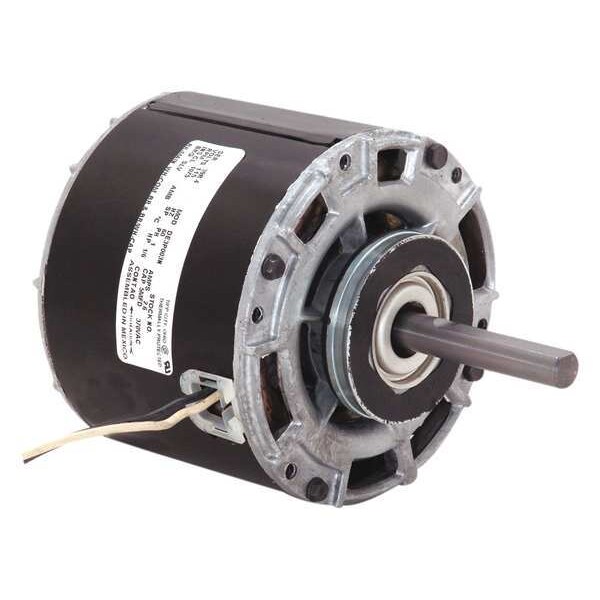

Century Motor, Sp Ph, 1/15 HP, 1550,115/208-230, 42Y 613A

Motor, Sp Ph, 1/15 HP, 1550,115/208-230, 42Y (Discontinued)

  • Mfr # 613A
  • Zoro # G2304617
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
613A
Zoro #
G2304617
UPC #
-
Country of Origin
Mexico

Dimensions

Body Dia.
5 in
Resilient Ring Dia.
2 1/4 in
Shaft Dia.
3/8 in
Bolt Circle Dia.
3 1/2 in
Shaft Length
3 1/4 in
Length Less Shaft
6 in
Overall Length
5 in
Lead Length
30 in

Details

Motor Application
HVAC/R
RPM Range
1,501-1,600
Standards
CSA Certified, UL Recognized
Application
Room Air Conditioners, Unit Heaters, Condensers, Furnace Blowers, A Wide Range of Other Shaft Mounted Fan and Blower Equipment
Duty
Continuous
Motor Enclosure Design
Open Air-Over
Includes
Resilient Ring
Item
HVAC Motor
No. of Speeds
1
Motor Bearings
Sleeve
Motor Design
Shaded Pole
Motor Thermal Protection
Auto
HP
1/15
Ins. Class
A
Motor Sub Application
Refrigerator/Freezer
Ring to Ring Center
5 1/16 in
Motor Mounting Type
Ring
Mounting Stud Pattern
2-1/2 in x 2-1/2 in
Motor Service Factor
1
Max. Ambient Temp.
40 Degrees C
Hz
60 Hz
Capacitor Required
No
Frame
42Y
Motor Mounting Position
Horizontal
Phase
Single
Voltage
115/208-230V AC
Nameplate RPM
1,550
Full Load Amps
2.8/1.4-1.4 A
Motor Shaft Rotation
CCWSE
Motor Shaft Design
Flat
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Weight
8 lb
Duty Cycle
Continuous
Mounting Holes
(4) #10-32
Usable @ 200V
No
Number of Shafts
1
Motor Frame Material
Steel
Usable @ 208V
Yes
Number of Speeds
1
Mounting
Ring

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/15 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 2.8/1.4-1.4 A, 42Y Frame, Usable @ 208V Yes, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class A, Motor Shaft Rotation CCWSE, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Lead Length 30 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Ring, Motor Mounting Position Horizontal
