  11. Motor, Sp Ph, 1/3 HP, 1725,115/208-230V, 56Z

This item is Discontinued.

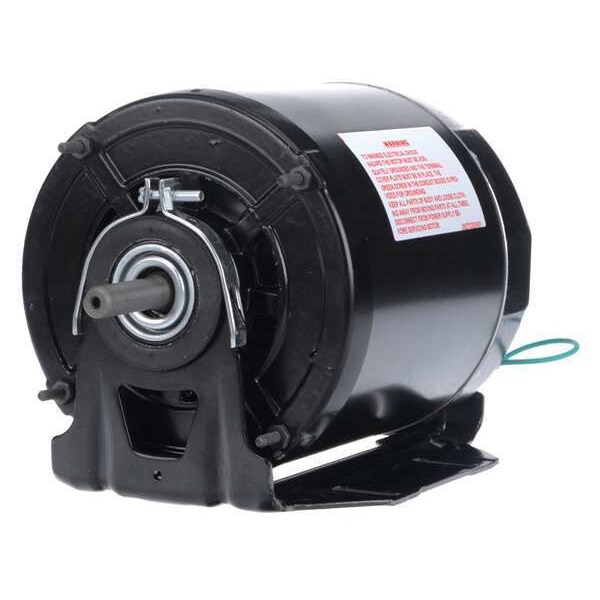

Century Motor, Sp Ph, 1/3 HP, 1725,115/208-230V, 56Z ARB2034L4

Motor, Sp Ph, 1/3 HP, 1725,115/208-230V, 56Z (Discontinued)

  • Mfr # ARB2034L4
  • Zoro # G1852891
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ARB2034L4
Zoro #
G1852891
UPC #
-
Country of Origin
Mexico

Dimensions

Stud Size
#10-32
Mounting Stud Length
1/2 in
Bolt Circle Dia.
5 13/16 in
Shaft Length
1 5/8 in
Manufacturers Warranty Length
1 yr
Body Dia.
6 1/2 in
Shaft Dia.
1/2 in
Overall Length
10 in
Length Less Shaft
8 3/8 in

Details

Motor Mounting Type
Cradle Base
Item
Direct Drive Blower Motor
Motor Design
Split-Phase
Application
Blowers, Fans and Air Circulators
Motor Shaft Design
Keyed
Includes
5/8 in Diameter Bushing, Resilient Base
Nameplate RPM
1,725
Phase
Single
Motor Enclosure Design
Totally Enclosed Air-Over
RPM Range
1,701-1,800
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Mounting Stud Pattern
4-1/8 in x 4-1/8 in
Duty
Continuous
Motor Application
HVAC/R
Voltage
115/208-230V AC
Frame
56Z
Capacitor Required
No
Motor Service Factor
1.35
Full Load Amps
5.6/2.8 A
Standards
CSA Certified, UL Recognized
Max. Ambient Temp.
40 Degrees C
HP
1/3
Motor Mounting Position
All Angle
Motor Bearings
Ball
Motor Sub Application
Direct Drive Fan/Blower
No. of Speeds
1
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Mounting Stud Location
Shaft End
Ins. Class
B
Hz
60 Hz
Stud Quantity
4
Mounting Holes
4
Motor Frame Material
Steel
Number of Shafts
1
Weight
24 lb
Usable @ 200V
No
Duty Cycle
Continuous
Usable @ 208V
Yes
Number of Speeds
1
Mounting
Cradle Base

Description

Direct Drive Blower Motor, Single Phase, Motor Design Split-Phase, 1/3 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 5.6/2.8 A, 56Z Frame, Usable @ 208V Yes, Usable @ 200V No, Motor Thermal Protection None, 60 Hz Hz, Motor Service Factor 1.35, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle
