  11. Motor, Split Ph, 1/3 HP, 1725,115V, 56CZ, ODP
This item is Discontinued.

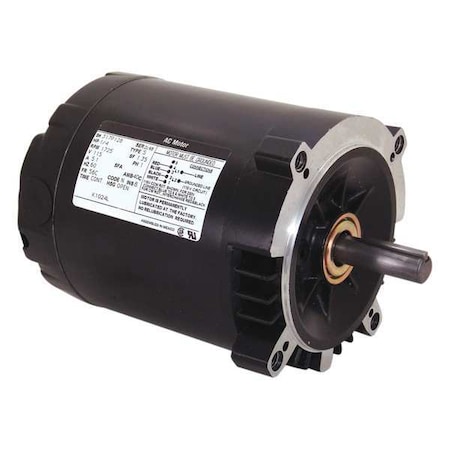

Century Motor, Split Ph, 1/3 HP, 1725,115V, 56CZ, ODP F394

Motor, Split Ph, 1/3 HP, 1725,115V, 56CZ, ODP (Discontinued)

  • Mfr # F394
  • Zoro # G2430723
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
F394
Zoro #
G2430723
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
2 7/16 in
Body Dia.
6 1/2 in
Length Less Shaft
9 13/16 in
Overall Length
10 1/8 in

Details

Item
C-Frame Motor
Full Load Amps
5.09 A
Ins. Class
B
Voltage
115V AC
Phase
Single
Duty
Continuous
Capacitor Required
No
Motor Enclosure Design
Open Dripproof
Standards
CSA Certified, UL Recognized
Motor Bearings
Ball
Motor Mounting Position
All Angle
Hz
60 Hz
Max. Ambient Temp.
40 Degrees C
Application
C Face Vent, Designed for Use On Commercial and Industrial Ventilation Systems
Motor Shaft Rotation
CW/CCW
Motor Design
Split-Phase
Motor Mounting Type
Face
RPM Range
1,701-1,800
HP
1/3
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Frame
56CZ
Nameplate RPM
1,725
Motor Service Factor
1.35
Motor Shaft Design
Keyed
Motor Thermal Protection
Auto
Motor Application
HVAC/R
No. of Speeds
1
Motor Sub Application
Aeration Fan
Duty Cycle
Continuous
Weight
15 lb
Number of Shafts
1
Usable @ 200V
No
Usable @ 208V
No
Motor Frame Material
Steel
Stud Quantity
4
Mounting Holes
(4) 3/8 in-16
Mounting
Face
Number of Speeds
1

Description

C-Frame Motor, Single Phase, Motor Design Split-Phase, 1/3 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, Full Load Amps 5.09 A, 56CZ Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1.35, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Open Dripproof, Motor Mounting Type Face, Motor Mounting Position All Angle, Number of Shafts 1
