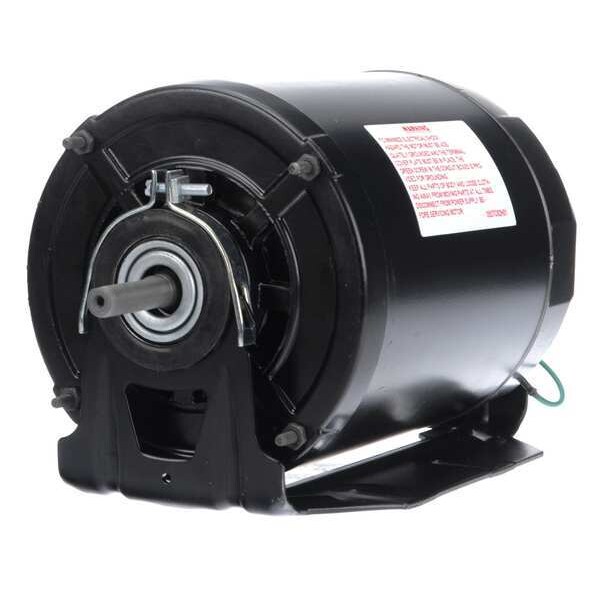

Motor, Split Ph, 1/3 HP, 1725,115V, 56Z, TEAO (Discontinued)
- Mfr # ARB2034L3
- Zoro # G2538112
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
ARB2034L3
Zoro #
G2538112
UPC #
-
Country of Origin
Mexico
Dimensions
Stud Size
#10-32
Body Dia.
6 1/2 in
Length Less Shaft
9 3/8 in
Bolt Circle Dia.
5 13/16 in
Mounting Stud Length
1/2 in
Shaft Length
1 5/8 in
Resilient Ring Dia.
2 1/2 in
Manufacturers Warranty Length
1 yr
Overall Length
11 in
Shaft Dia.
5/8 in
Description
Direct Drive Blower Motor, Single Phase, Motor Design Split-Phase, 1/3, 1/9 HP, Nameplate RPM 1,725/1,140, No. of Speeds 2, Voltage 115V AC, Full Load Amps 5.6/3.2 A, 56Z Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection None, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal
