  11. Motor, Split Ph, 1/4 HP, 1140,115V, 56CZ, ODP
This item is Discontinued.

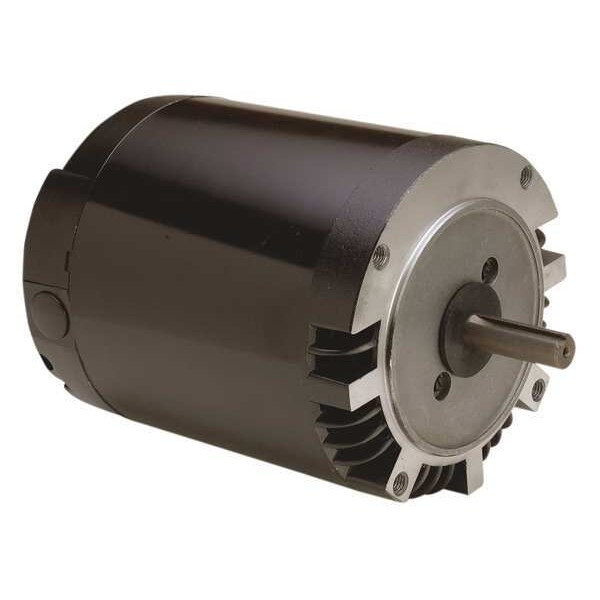

Century Motor, Split Ph, 1/4 HP, 1140,115V, 56CZ, ODP F273

Motor, Split Ph, 1/4 HP, 1140,115V, 56CZ, ODP (Discontinued)

  • Mfr # F273
  • Zoro # G1483246
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
F273
Zoro #
G1483246
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
9 in
Body Dia.
6 1/2 in
Shaft Length
2 1/4 in
Shaft Dia.
5/8 in
Overall Length
11 1/4 in

Details

Application
C Face Vent, Designed for Use On Commercial and Industrial Ventilation Systems
Motor Application
HVAC/R
Duty
Continuous
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Thermal Protection
Auto
Nameplate RPM
1,140
Motor Enclosure Design
Open Dripproof
Full Load Amps
5 A
Item
C-Frame Motor
Motor Bearings
Ball
Ins. Class
B
Phase
Single
No. of Speeds
1
Standards
CSA Certified, UL Recognized
Frame
56CZ
HP
1/4
Hz
60 Hz
Motor Mounting Position
All Angle
Motor Shaft Rotation
CW/CCW
Motor Service Factor
1.35
Capacitor Required
No
RPM Range
1,101-1,200
Motor Shaft Design
Keyed
Motor Sub Application
Aeration Fan
Voltage
115V AC
Motor Design
Split-Phase
Motor Mounting Type
Face
Max. Ambient Temp.
40 Degrees C
Mounting Holes
(4) 3/8 in-16
Usable @ 200V
No
Weight
25 lb
Usable @ 208V
No
Motor Frame Material
Steel
Number of Shafts
1
Stud Quantity
4
Duty Cycle
Continuous
Mounting
Face
Number of Speeds
1

Description

C-Frame Motor, Single Phase, Motor Design Split-Phase, 1/4 HP, Nameplate RPM 1,140, No. of Speeds 1, Voltage 115V AC, Full Load Amps 5 A, 56CZ Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1.35, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Open Dripproof, Motor Mounting Type Face, Motor Mounting Position All Angle, Number of Shafts 1
