  11. Mtr, PSC, 1/4 HP, 1050,115/208-230V, 48Y, OAO

This item is Discontinued.

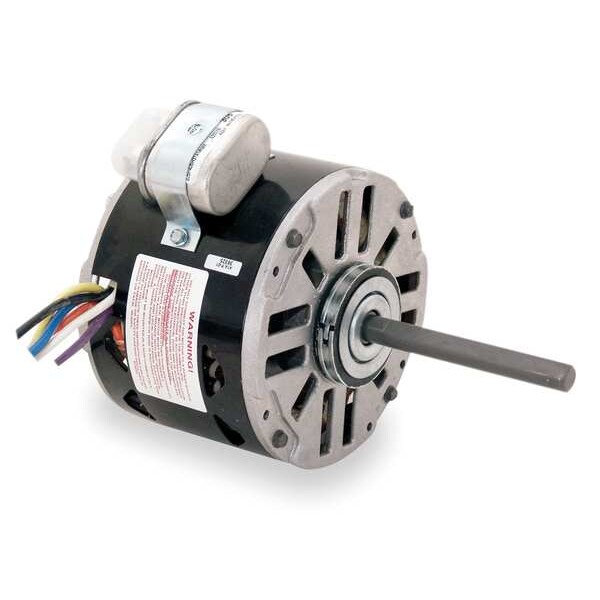

Century Mtr, PSC, 1/4 HP, 1050,115/208-230V, 48Y, OAO 495B

Mtr, PSC, 1/4 HP, 1050,115/208-230V, 48Y, OAO (Discontinued)

  • Mfr # 495B
  • Zoro # G1728666
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
495B
Zoro #
G1728666
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Manufacturers Warranty Length
1 yr
Shaft Length
4 in
Body Dia.
5 5/8 in
Resilient Ring Dia.
2 1/2 in
Overall Length
8 15/16 in
Length Less Shaft
4 1/4 in
Lead Length
30 in

Details

Motor Sub Application
Direct Drive Fan/Blower
Motor Enclosure Design
Open Air-Over
Hz
60 Hz
Nameplate RPM
1,050
Includes
Resilient Mounting Ring
Max. Ambient Temp.
40 Degrees C
Motor Application
HVAC/R
Motor Shaft Design
Flat
Motor Mounting Type
Ring
No. of Speeds
1
Phase
Single
Motor Thermal Protection
Auto
Frame
48Y
Capacitor Required
2MDV4
Motor Shaft Rotation
CCWLE
Application
Blowers, Fans and Air Circulators
RPM Range
1,001-1,100
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Duty
Continuous
Motor Mounting Position
Horizontal
Item
Direct Drive Blower Motor
HP
1/4
Ins. Class
B
Ring to Ring Center
4 7/8 in
Motor Bearings
Sleeve
Full Load Amps
4.4/2.0-2.2 A
Standards
CSA, UL
Voltage
115/208-230V AC
Motor Design
Permanent Split Capacitor
Motor Service Factor
1
Stud Quantity
4
Usable @ 200V
No
Usable @ 208V
Yes
Motor Frame Material
Steel
Number of Shafts
1
Weight
11 lb
Number of Speeds
1
Mounting
Ring

Description

Direct Drive Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 HP, Nameplate RPM 1,050, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 4.4/2.0-2.2 A, 48Y Frame, Usable @ 208V Yes, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CCWLE, Max. Ambient Temp. 40 Degrees C, Lead Length 30 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Ring, Motor Mounting Position Horizontal
