  11. Mtr, PSC, 1/6 HP, 1050,115/208-230V, 48Y, OAO
This item is Discontinued.

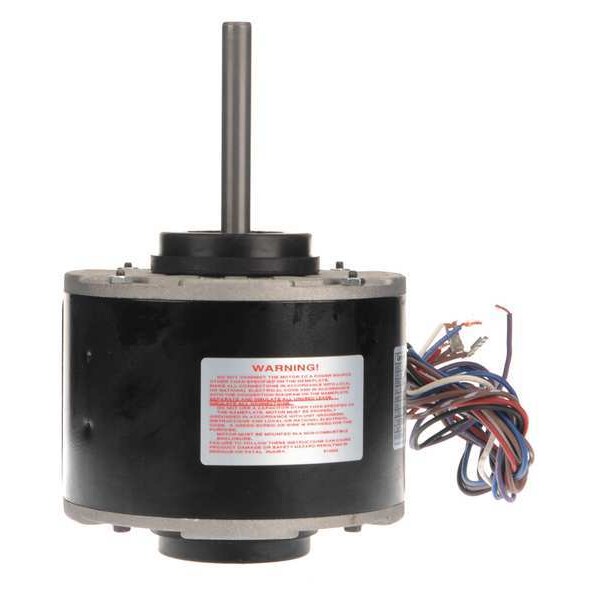

Century Mtr, PSC, 1/6 HP, 1050,115/208-230V, 48Y, OAO 494B

Mtr, PSC, 1/6 HP, 1050,115/208-230V, 48Y, OAO (Discontinued)

  • Mfr # 494B
  • Zoro # G2330203
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
494B
Zoro #
G2330203
UPC #
-
Country of Origin
Mexico

Dimensions

Resilient Ring Dia.
2 1/2 in
Body Dia.
5 5/8 in
Overall Length
8 11/16 in
Shaft Length
4 1/16 in
Shaft Dia.
1/2 in
Manufacturers Warranty Length
1 yr
Length Less Shaft
4 in
Lead Length
30 in

Details

Ring to Ring Center
4 9/16 in
Motor Sub Application
Direct Drive Fan/Blower
Motor Shaft Rotation
CCWLE
Item
Direct Drive Blower Motor
HP
1/6
No. of Speeds
1
Application
Blowers, Fans and Air Circulators
Hz
60 Hz
Phase
Single
Duty
Continuous
Motor Mounting Position
Horizontal
Voltage
115/208-230V AC
Motor Thermal Protection
Auto
Motor Shaft Design
Flat
Capacitor Required
2MDV4
Ins. Class
B
Motor Bearings
Sleeve
Motor Service Factor
1
Nameplate RPM
1,050
Motor Mounting Type
Ring
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
RPM Range
1,001-1,100
Mounting Stud Pattern
3-5/8 in x 3-5/8 in
Motor Design
Permanent Split Capacitor
Frame
48Y
Motor Enclosure Design
Open Air-Over
Full Load Amps
3.3/1.5-1.7 A
Max. Ambient Temp.
40 Degrees C
Standards
CSA (LR43341/LR12645), UL (E46412/E49807)
Motor Application
HVAC/R
Includes
Resilient Mounting Ring
Stud Quantity
4
Motor Frame Material
Steel
Weight
10 lb
Duty Cycle
Continuous
Usable @ 208V
Yes
Usable @ 200V
No
Number of Shafts
1
Mounting
Ring
Number of Speeds
1

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/6 hp HP, Nameplate RPM 1,050 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 3.3/1.5-1.7 A Full Load Amps, 48Y Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Open Air-Over, Motor Mounting Type Resilient Ring
