  11. Mtr, PSC, 1/6 HP, 1550,115/208-230V, 48Y, OAO
This item is Discontinued.

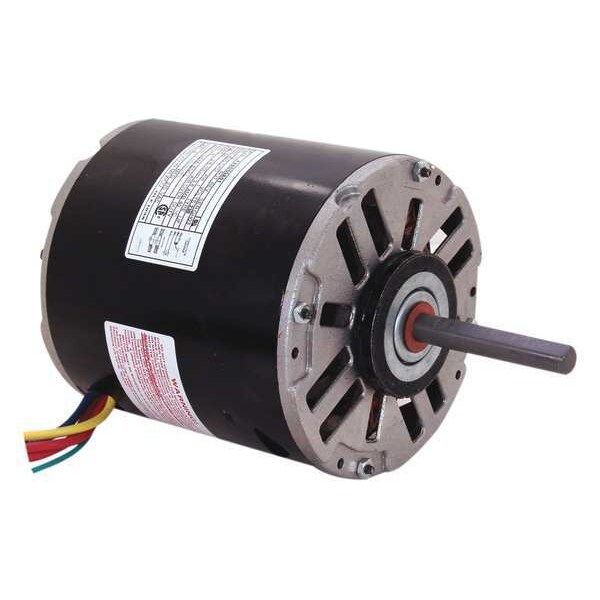

Century Mtr, PSC, 1/6 HP, 1550,115/208-230V, 48Y, OAO 9699

Mtr, PSC, 1/6 HP, 1550,115/208-230V, 48Y, OAO (Discontinued)

  • Mfr # 9699
  • Zoro # G1051863
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9699
Zoro #
G1051863
UPC #
-
Country of Origin
Mexico

Dimensions

Resilient Ring Dia.
2 1/4 in
Length Less Shaft
4 7/8 in
Shaft Length
4 1/2 in
Body Dia.
5 5/8 in
Shaft Dia.
1/2 in
Overall Length
8 7/8 in
Lead Length
12 in

Details

Motor Shaft Rotation
CCWLE
RPM Range
1,501-1,600
Motor Enclosure Design
Open Air-Over
Ins. Class
B
Nameplate RPM
1,550
Frame
48Y
Full Load Amps
2.8/1.4/1.4 A
Motor Bearings
Sleeve
Motor Service Factor
1
Standards
UL Recognized
Motor Thermal Protection
Auto
Phase
Single
Motor Mounting Position
Horizontal
Includes
Resilient Mounting Ring
Max. Ambient Temp.
40 Degrees C
HP
1/6
Capacitor Required
2MDV7
Duty
Continuous
Motor Application
HVAC/R
Motor Design
Permanent Split Capacitor
Hz
50 Hz
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Shaft Design
Flat
No. of Speeds
1
Application
Room Air Conditioners, Unit Heaters, Condensers, Furnace Blowers, A Wide Range of Other Shaft Mounted Fan and Blower Equipment
Item
Direct Drive Blower Motor
Ring to Ring Center
4 7/16 in
Motor Mounting Type
Ring
Voltage
115/208-230V AC
Motor Sub Application
Direct Drive Fan/Blower
Usable @ 200V
No
Motor Frame Material
Steel
Number of Shafts
1
Stud Quantity
4
HP @ 50Hz
1/6
Mounting Holes
4
Weight
9 lb
Full Load Amps @ 50Hz
2.8/1.40-1.40 A
Service Factor @ 50Hz
1
RPM @ 50Hz
1,550 RPM
Voltage @ 50Hz
115/208-230V AC
Usable @ 208V
Yes
Mounting
Ring
Number of Speeds
1

Description

Direct Drive Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/6 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 2.8/1.4/1.4 A, 48Y Frame, Usable @ 208V Yes, Usable @ 200V No, Motor Thermal Protection Auto, 50 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CCWLE, Max. Ambient Temp. 40 Degrees C, Lead Length 12 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Ring, Motor Mounting Position Horizontal
