  11. Mtr, PSC, 3/4 HP, 1075 RPM, 208-230V, 56Y, OAO

This item is Discontinued.

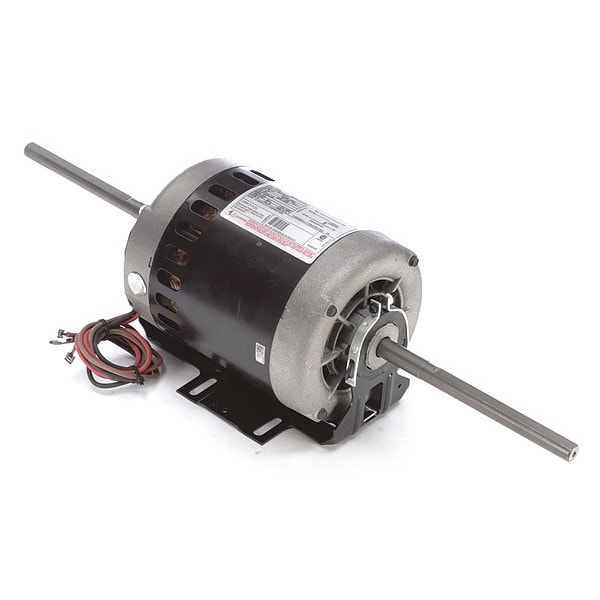

Century Mtr, PSC, 3/4 HP, 1075 RPM, 208-230V, 56Y, OAO C024

Mtr, PSC, 3/4 HP, 1075 RPM, 208-230V, 56Y, OAO (Discontinued)

  • Mfr # C024
  • Zoro # G1135477
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C024
Zoro #
G1135477
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
7 1/2 in
Body Dia.
6.5 in
Length Less Shaft
9 1/2 in
Overall Length
24 11/16 in

Details

Motor Design
Permanent Split Capacitor
HP
3/4
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
208-230V AC
Motor Shaft Rotation
CCW
Frame
56Y
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Cradle Base
Nameplate RPM
1,075
Hz
60
Motor Application
OEM Replacement
Motor Thermal Protection
Auto
Replacement For
K63TXMR-1109
Max. Ambient Temp.
104 Degrees F
Capacitor Required
2MDV7
Duty
Continuous
Number of Shafts
2
Standards
CSA, UL
Ins. Class
B
Motor Service Factor
1
Item
OEM Replacement Motor
Voltage Compatibility
115/208-230V AC, 208-230V AC, 208-240V AC
OEM Replacement Brand
Fedders
Motor Bearings
Ball
Phase
Single
Application
Room A/C
Full Load Amps
6.0 A
Motor Shaft Design
Flat
Motor Mounting Position
All Angle
Weight
37 lb
Duty Cycle
Continuous
Usable @ 200V
No
Usable @ 208V
Yes
Motor Frame Material
Steel
Rotation
CCWLE
Mounting
Cradle Base
Number of Speeds
1

Description

OEM Replacement Motor, Single Phase, Motor Design Permanent Split Capacitor, 3/4 HP, Nameplate RPM 1,075, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 6.0 A, 56Y Frame, OEM Replacement Brand Fedders, Replacement For K63TXMR-1109, Usable @ 208V Yes, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, Motor Shaft Rotation CCW, Motor Enclosure Design Open Air-Over
