This item is Discontinued.

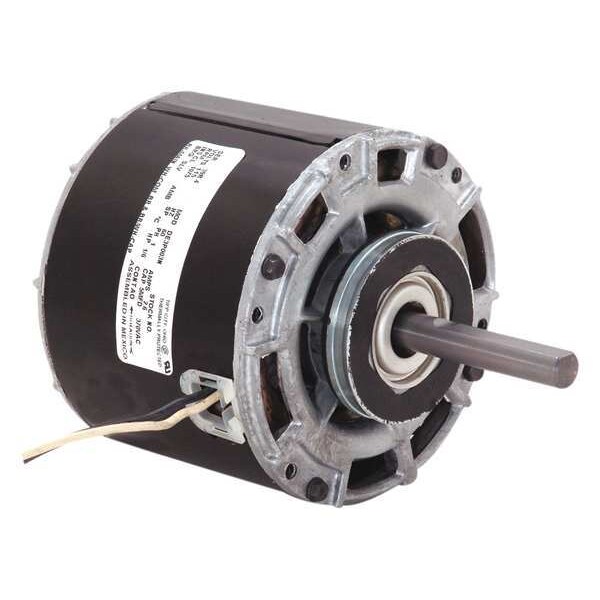

Century Mtr, Sh Pole, 1/15 HP, 1550,115/208-230, 42Y 612A

Mtr, Sh Pole, 1/15 HP, 1550,115/208-230, 42Y (Discontinued)

  • Mfr # 612A
  • Zoro # G1584432
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
612A
Zoro #
G1584432
UPC #
-
Country of Origin
Mexico

Dimensions

Resilient Ring Dia.
2 1/4 in
Length Less Shaft
6 in
Shaft Dia.
3/8 in
Body Dia.
5 in
Shaft Length
3 1/4 in
Bolt Circle Dia.
3 1/2 in
Overall Length
8 7/8 in
Lead Length
30 in

Details

Nameplate RPM
1,550
Motor Shaft Rotation
CWLE
Ring to Ring Center
5 1/16 in
Hz
60 Hz
No. of Speeds
1
Motor Bearings
Sleeve
Motor Shaft Design
Flat
Mounting Stud Pattern
2-1/2 in x 2-1/2 in
Motor Mounting Position
Horizontal
Motor Design
Shaded Pole
Duty
Continuous
Motor Application
HVAC/R
Standards
CSA Certified, UL Recognized
HP
1/15
Item
HVAC Motor
Ins. Class
A
Voltage
115/208-230V AC
Capacitor Required
No
Motor Mounting Type
Ring
RPM Range
1,501-1,600
Motor Sub Application
Direct Drive Fan/Blower
Phase
Single
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Enclosure Design
Open Air-Over
Application
Room Air Conditioners, Unit Heaters, Condensers, Furnace Blowers, A Wide Range of Other Shaft Mounted Fan and Blower Equipment
Max. Ambient Temp.
40 Degrees C
Includes
Resilient Ring
Frame
42Y
Full Load Amps
2.8/1.4 A
Motor Service Factor
1
Motor Thermal Protection
Auto
Motor Frame Material
Steel
Duty Cycle
Continuous
Usable @ 200V
No
Weight
8 lb
Mounting Holes
(4) #10-32
Usable @ 208V
Yes
Number of Shafts
1
Mounting
Ring
Number of Speeds
1

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/15 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 2.8/1.4 A, 42Y Frame, Usable @ 208V Yes, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class A, Motor Shaft Rotation CWLE, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Lead Length 30 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Ring, Motor Mounting Position Horizontal, Number of Shafts 1
