  11. Mtr, Sh Pole, 1/6 HP, 1550,208-230V, 42Y, OAO
This item is Discontinued.

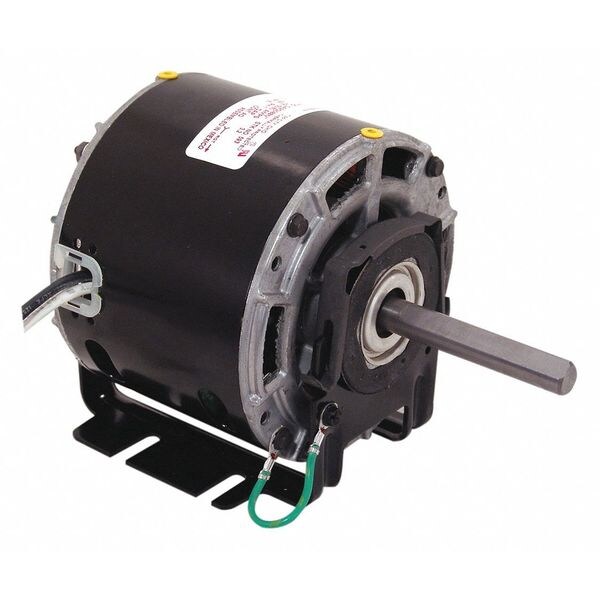

Century Mtr, Sh Pole, 1/6 HP, 1550,208-230V, 42Y, OAO 593

Mtr, Sh Pole, 1/6 HP, 1550,208-230V, 42Y, OAO (Discontinued)

  • Mfr # 593
  • Zoro # G1566905
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
593
Zoro #
G1566905
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
4 15/16 in
Body Dia.
5 in
Shaft Length
3 5/16 in
Resilient Ring Dia.
2 1/2 in
Shaft Dia.
1/2 in
Lead Length
36 in
Overall Length
7 5/16 in

Details

Full Load Amps
3.02 A
Standards
CSA, UL
Motor Thermal Protection
Auto
HP
1/6
RPM Range
1,501-1,600
Nameplate RPM
1,550
Motor Sub Application
Direct Drive Fan/Blower
Capacitor Required
No
Motor Bearings
Sleeve
Item
Direct Drive Blower Motor
No. of Speeds
1
Motor Service Factor
1
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Voltage
208-230V AC
Phase
Single
Max. Ambient Temp.
40 Degrees C
Application
Blowers, Fans and Air Circulators
Motor Shaft Rotation
CCWSE
Motor Shaft Design
Flat
Motor Application
HVAC/R
Motor Design
Shaded Pole
Includes
Base
Motor Enclosure Design
Open Air-Over
Motor Mounting Position
Horizontal
Hz
50 Hz
Ring to Ring Center
4 9/16 in
Ins. Class
B
Motor Mounting Type
Cradle Base
Duty
Continuous
Frame
42Y
Voltage @ 50Hz
208-230V AC
Usable @ 208V
Yes
Usable @ 200V
No
Stud Quantity
4
RPM @ 50Hz
1,500 RPM
HP @ 50Hz
1/6
Service Factor @ 50Hz
1
Weight
10 lb
Motor Frame Material
Steel
Duty Cycle
Continuous
Number of Shafts
1
Number of Speeds
1
Mounting
Cradle Base

Description

Direct Drive Blower Motor, Single Phase, Motor Design Shaded Pole, 1/6 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 3.02 A, 42Y Frame, Usable @ 208V Yes, Usable @ 200V No, Motor Thermal Protection Auto, 50 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CCWSE, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Lead Length 36 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal
