  11. Mtr, Sh Pole, 1/8 HP, 1050,208-230V, 42Y, OAO
This item is Discontinued.

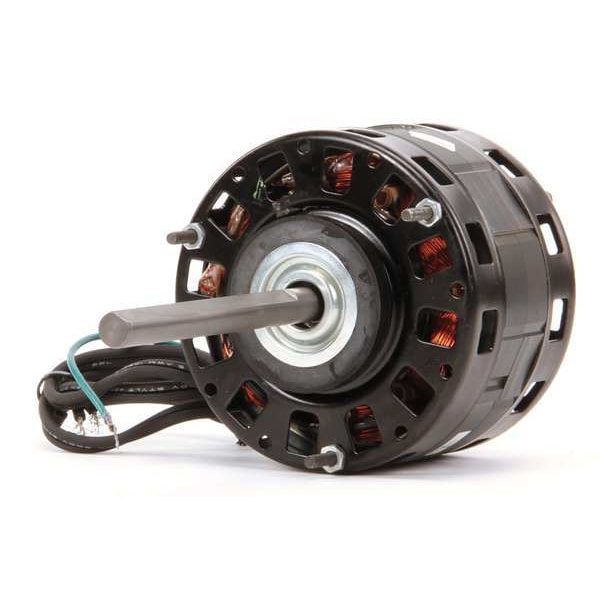

Century Mtr, Sh Pole, 1/8 HP, 1050,208-230V, 42Y, OAO B6411

Mtr, Sh Pole, 1/8 HP, 1050,208-230V, 42Y, OAO (Discontinued)

  • Mfr # B6411
  • Zoro # G2566986
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
B6411
Zoro #
G2566986
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
5 1/2 in
Shaft Dia.
1/2 in
Resilient Ring Dia.
2 1/2 in
Bolt Circle Dia.
4 7/16 in
Length Less Shaft
4 7/16 in
Body Dia.
5 in
Stud Size
#10-32
Overall Length
8 7/8 in
Lead Length
36 in

Details

Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Motor Service Factor
1
Motor Shaft Design
Flat
Motor Mounting Position
Horizontal
Motor Design
Shaded Pole
Standards
UL Recognized
Nameplate RPM
1,050
Motor Mounting Type
Ring
Hz
60 Hz
Item
Direct Drive Blower Motor
Voltage
208-230V AC
Ring to Ring Center
4 1/16 in
Capacitor Required
No
Application
Blowers, Fans and Air Circulators
Max. Ambient Temp.
40 Degrees C
Mounting Stud Pattern
3-1/8" x 3-1/8"
No. of Speeds
1
Frame
42Y
Includes
Resilient Mounting Ring
Ins. Class
A
Motor Enclosure Design
Open Air-Over
Motor Thermal Protection
Auto
RPM Range
1,001-1,100
Full Load Amps
2.06 A
Motor Sub Application
Direct Drive Fan/Blower
Motor Bearings
Sleeve
Motor Shaft Rotation
CCWLE
Duty
Continuous
Phase
Single
HP
1/8
Motor Application
HVAC/R
Usable @ 200V
No
Motor Frame Material
Steel
Number of Shafts
1
Weight
9 lb
Usable @ 208V
Yes
Stud Quantity
4
Mounting Holes
4
Mounting
Ring
Number of Speeds
1

Description

Direct Drive Blower Motor, Single Phase, Motor Design Shaded Pole, 1/8 HP, Nameplate RPM 1,050, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 2.06 A, 42Y Frame, Usable @ 208V Yes, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class A, Motor Shaft Rotation CCWLE, Max. Ambient Temp. 40 Degrees C, Lead Length 36 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Ring, Motor Mounting Position Horizontal, Number of Shafts 1
