This item is Discontinued.

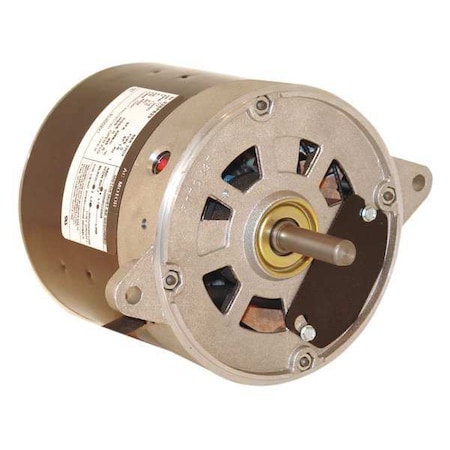

Century Oil BurnerMotor, 1/3 HP, 3450,115/230v, 48N OL2032

Oil BurnerMotor, 1/3 HP, 3450,115/230v, 48N (Discontinued)

  • Mfr # OL2032
  • Zoro # G0815367
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
OL2032
Zoro #
G0815367
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
2 in
Shaft Dia.
1/2 in
Body Dia.
6 3/4 in
Overall Length
8 3/4 in
Bolt Circle Dia.
7 1/4 in
Length Less Shaft
6 3/4 in

Details

Item
Oil Burner Motor
Motor Design
Capacitor-Start
Motor Enclosure Design
Open
HP
1/3
Nameplate RPM
3,450
Frame
48N
Voltage
115/230V AC
Motor Mounting Type
Face
Motor Shaft Rotation
CW/CCW
Motor Application
HVAC/R
Motor Flange Material
Aluminum
Motor Thermal Protection
Manual
Motor Flange Type
Ventilated
Ambient Temperature
40 Degrees C
Motor Sub Application
Oil Burner
Full Load Amps
4.2/2.1 A
Standards
CSA Certified
Hz
60 Hz
Max. Ambient Temp.
40 Degrees C
RPM Range
3,001-3,600
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Bearings
Sleeve
Features
Reversible Rotation
Phase
Single
Motor Service Factor
1
Ins. Class
B
Motor Shaft Design
Flat
Output Watts
250 W
Duty Cycle
Continuous
Weight
18 lb
Motor Mounting Position
All Angle
Usable @ 200V
No
Usable @ 208V
No
Motor Frame Material
Steel
No. of Speeds
1

Description

Oil Burner Motor, Single Phase, Motor Design Capacitor-Start, 1/3 HP, Nameplate RPM 3,450, No. of Speeds 1, Voltage 115/230V AC, 4.2/2.1 A Full Load Amps, 48N Frame, Output Watts 250 W, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open, Motor Mounting Type Face, Motor Frame Material Steel
