This item is Discontinued.

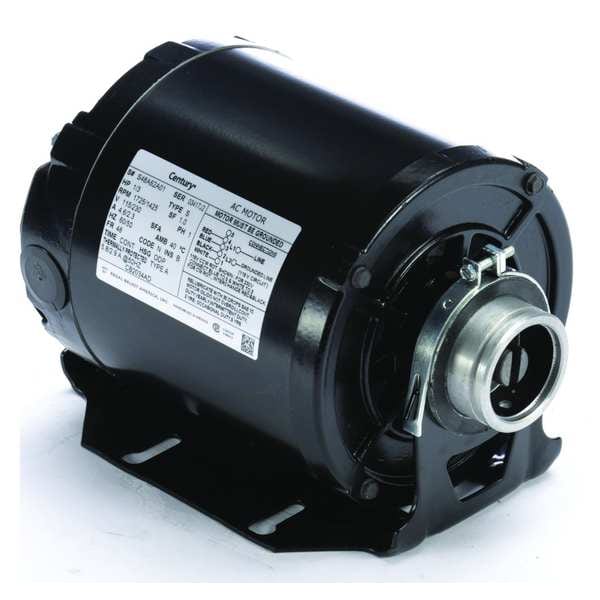

Century Pump Mtr, Split Ph, 1/3hp, 1725,115/230, 48Y CB2034AD

Pump Mtr, Split Ph, 1/3hp, 1725,115/230, 48Y (Discontinued)

  • Mfr # CB2034AD
  • Zoro # G2013724
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CB2034AD
Zoro #
G2013724
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Overall Length
8 9/16 in
Shaft Length
3/8 in
Body Dia.
5.7 in
Length Less Shaft
8 5/16 in
Height
7 in
Shaft Dia. (In.)
5/8

Details

Item
Carbonator Pump Motor
Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
HP
1/3
Nameplate RPM
1,725
RPM Range
1,701-1,800
Voltage
115/230V AC
Frame
48Y
Motor Service Factor
1
Motor Sub Application
Carbonator Pump
Ins. Class
B
Standards
CSA, UL
Phase
Single
Full Load Amps
4.6/2.3
Motor Thermal Protection
Auto
Motor Mounting Type
Cradle Base
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Shaft Rotation
CW/CCW
Motor Application
Pump
Hz
60/50
Max. Ambient Temp.
40 Degrees C
Motor Bearings
Sleeve
Duty Cycle
Continuous
Usable @ 208V
No
No. of Speeds
1
Weight
15 lb
Usable @ 200V
No
Motor Frame Material
Steel
RPM @ 50Hz
1,425

Description

Carbonator Pump Motor, Body Dia. 5.7 in, Duty Cycle Continuous, Frame 48Y, Hz 60/50, Full Load Amps 4.6/2.3, Height 7 in, HP 1/3, Ins. Class B, Length Less Shaft 8 5/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Sleeve, Motor Design Split-Phase, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
