Product Information
MFR #
7RA1026
Zoro #
G3032872
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Dia.
1/2 in
Body Dia.
5 5/8 in
Lead Length
36 in
Resilient Ring Dia.
2 1/4 in
Stud Size
#8-32 x 1-1/2 in
Bolt Circle Dia.
5 1/8 in
Length Less Shaft
4 1/2 in
Shaft Length
7 7/8 in
Overall Length
20 in
Description

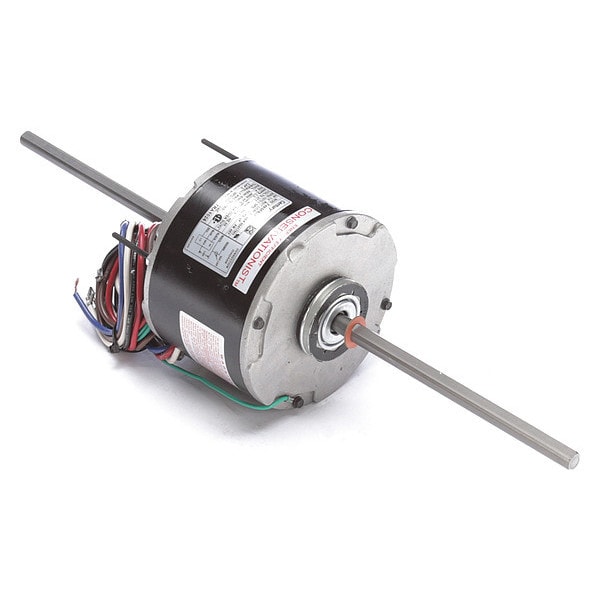

Room Air Conditioner Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 HP, Nameplate RPM 1,075, No. of Speeds 3, Voltage 277V AC, Full Load Amps 1.03 A, 48Y Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class A, Motor Shaft Rotation CCWLE, Max. Ambient Temp. 40 Degrees C, Lead Length 36 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Ring/Stud, Motor Mounting Position Horizontal, Number of Shafts 2
