  11. Room Air Cond Mtr, PSC, OAO, 1075 RPM
This item is Discontinued.

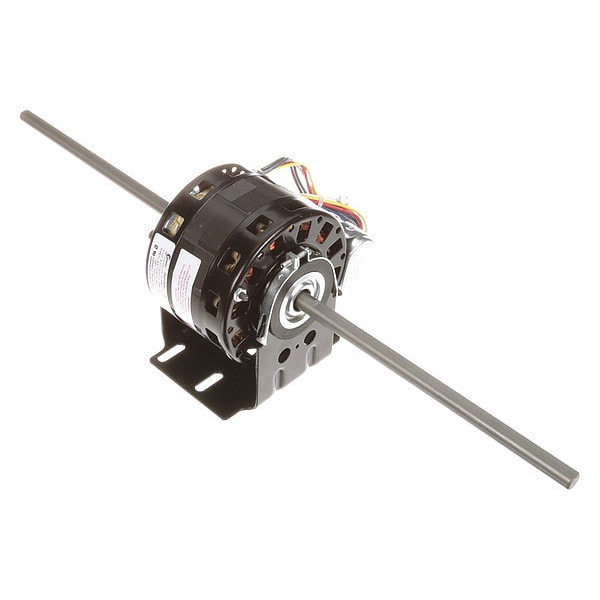

Century Room Air Cond Mtr, PSC, OAO, 1075 RPM DBL6501V1

Room Air Cond Mtr, PSC, OAO, 1075 RPM (Discontinued)

  • Mfr # DBL6501V1
  • Zoro # G2125207
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DBL6501V1
Zoro #
G2125207
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Resilient Ring Dia.
2 1/2 in
Shaft Length
9 5/16 in
Body Dia.
5 in
Lead Length
38 1/2 in
Length Less Shaft
4 3/8 in
Overall Length
22 in

Details

Motor Design
Permanent Split Capacitor
HP
1/10, 1/12, 1/15, 1/20
RPM Range
1,001-1,100
No. of Speeds
4
Voltage
115V AC
Motor Shaft Rotation
CCWLE
Frame
42Y
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Resilient Base
Motor Application
HVAC/R
Motor Sub Application
Fan Coil, Room Air Conditioner Motor
Phase
1
Max. Ambient Temp.
40 Degrees C
Motor Bearings
Sleeve
Ring to Ring Center
4 1/16 in
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Thermal Protection
Auto
Ins. Class
A
Hz
60 Hz
Capacitor Required
Included
Full Load Amps
1.7,1.6,0.9,0.8 A
Item
Room Air Conditioner Motor
Nameplate RPM
1,075 RPM
Standards
CSA Certified, UL Recognized
Duty
Continuous
Motor Shaft Design
Flat
Motor Service Factor
1
Usable @ 208V
No
Number of Shafts
2
Weight
12 lb
Usable @ 200V
No
Motor Mounting Position
Horizontal
Number of Speeds
4
Mounting
Cradle Base
Application
High Efficiency Performance in Fan Coil Heating/Air Conditioning, Furnace Blowers, Unit Heaters and Other Shaft-mounted Fan/Blower

Description

Room Air Conditioner Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/10 hp, 1/12 hp, 1/15 hp, 1/20 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 4, Voltage 115V AC, 1.7,1.6,0.9,0.8 A Full Load Amps, 42Y Frame, Output Watts 70 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Open Air Over
