  11. Room Air Cond Mtr, PSC, OAO, 1075 RPM
This item is Discontinued.

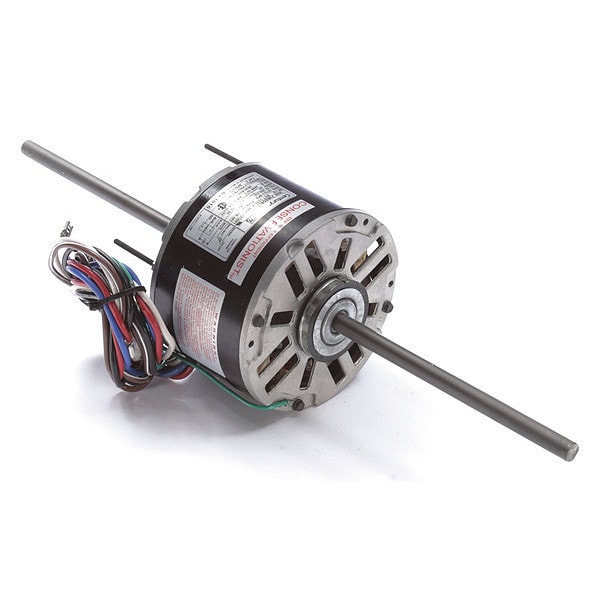

Century Room Air Cond Mtr, PSC, OAO, 1075 RPM RA1016

Room Air Cond Mtr, PSC, OAO, 1075 RPM (Discontinued)

  • Mfr # RA1016
  • Zoro # G3334633
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RA1016
Zoro #
G3334633
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Lead Length
35 in
Shaft Length
8 5/16 in
Resilient Ring Dia.
2 1/4 in
Bolt Circle Dia.
5 1/8 in
Stud Size
#8-32 x 1-5/8 in
Length Less Shaft
4 1/4 in
Body Dia.
5 5/8 in
Overall Length
20 in

Details

Motor Design
Permanent Split Capacitor
HP
1/6
RPM Range
1,001-1,100
No. of Speeds
3
Voltage
208-230V AC
Motor Shaft Rotation
CCWLE
Frame
48Y
Motor Enclosure Design
Semi Enclosed Air-Over
Motor Mounting Type
Resilient Ring, Extended Stud
Full Load Amps
0.96 A
Mounting Stud Pattern
3-5/8 in x 3-5/8 in
Motor Thermal Protection
Auto
Motor Application
HVAC/R
Nameplate RPM
1,075 RPM
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Standards
CSA Certified, UL Recognized
Capacitor Required
2MDV4
Motor Bearings
Sleeve
Hz
60 Hz
Item
Room Air Conditioner Motor
Phase
1
Max. Ambient Temp.
40 Degrees C
Motor Sub Application
Room Air Conditioner
Duty
Continuous
Ins. Class
B
Motor Service Factor
1
Motor Shaft Design
Flat
Usable @ 208V
Yes
Number of Shafts
2
Weight
11 lb
Usable @ 200V
No
Stud Quantity
4
Includes
Extended Studs, Resilient Rings
Mounting Holes
4
Duty Cycle
Continuous
Motor Mounting Position
Horizontal
Motor Frame Material
Steel
Number of Speeds
3
Application
Room Air Conditioners And Through-The-Wall Units, Shaft-Mounted Fan And Blower
Mounting
Stud

Description

Room Air Conditioner Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/6 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 3, Voltage 208-230V AC, 0.96 A Full Load Amps, 48Y Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Semi Enclosed Air-Over
