Product Information
MFR #
SA1026
Zoro #
G2675215
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Dia.
1/2 in
Lead Length
36 in
Body Dia.
5 5/8 in
Length Less Shaft
4 1/8 in
Stud Size
#8-32 x 7/8 in
Shaft Length
7 7/8 in
Bolt Circle Dia.
5 1/8 in
Overall Length
20 in
Description

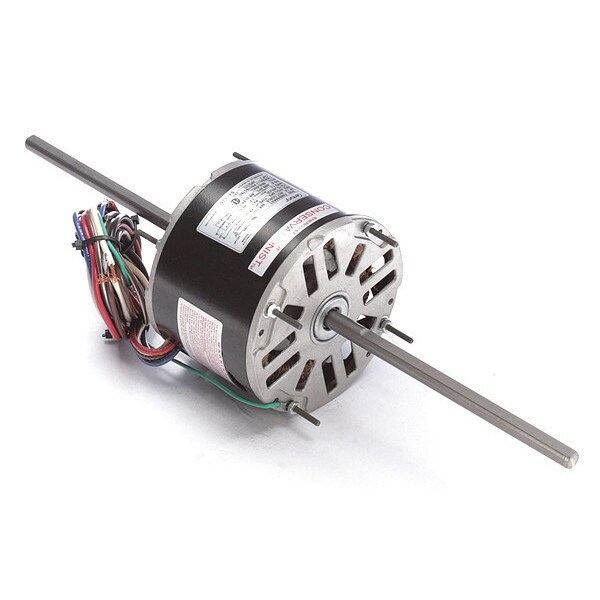

Room Air Conditioner Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 3, Voltage 208-230V AC, 1.05 A Full Load Amps, 48Y Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Semi Enclosed Air-Over, Motor Mounting Type Stud
