  11. Room Air Cond Mtr, PSC, OAO, 1550 RPM

This item is Discontinued.

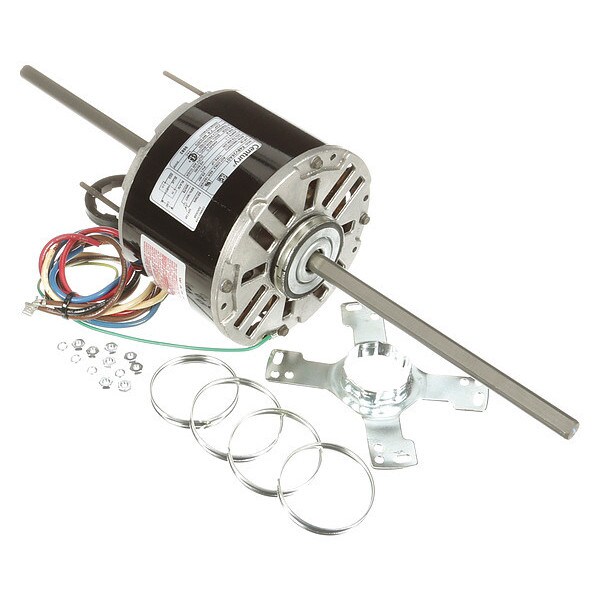

Century Room Air Cond Mtr, PSC, OAO, 1550 RPM 9682

Room Air Cond Mtr, PSC, OAO, 1550 RPM (Discontinued)

  • Mfr # 9682
  • Zoro # G0382681
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9682
Zoro #
G0382681
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2"
Bolt Circle Dia.
5-3/16"
Body Dia.
5-5/8"
Length Less Shaft
4-3/8"
Shaft Length
7-1/2"
Resilient Ring Dia.
2-1/4"
Lead Length
36"
Stud Size
#8-32 x 1-5/8"

Details

Motor Design
Permanent Split Capacitor
HP
1/8
RPM Range
1501-1600
No. of Speeds
3
Voltage
208-230
Motor Shaft Rotation
CCWLE
Frame
48Y
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Stud
Full Load Amps
1.1
Max. Ambient Temp.
40 Degrees C
Motor Bearings
Sleeve
Item
Room Air Conditioner Motor
Motor Shaft Design
Flat
Motor Application
HVAC/R
Standards
UL, CSA
Mounting Stud Pattern
3-5/8" x 3-5/8"
Motor Service Factor
1.00
Duty
Continuous
Motor Thermal Protection
Auto
Ins. Class
B
Hz
60/50
Nameplate RPM
1550
Phase
1
Capacitor Required
2MDV6
Motor Sub Application
Room Air Conditioner
Voltage Compatibility
115/208-230, 208-230, 208-240

Description

Room Air Conditioner Motor, Permanent Split Capacitor, 1/8 HP, RPM Range 1501-1600, No. of Speeds 3, Voltage 208-230, CCWLE Motor Shaft Rotation, 48Y Frame, Open Air-Over, Stud Motor Mounting Type, Shaft Dia. 1/2 In., Shaft Length 7-1/2 In., Motor Thermal Protection Auto, 1550 Nameplate RPM, 1 Phase, Sleeve Motor Bearings, Capacitor Required 2MDV6, Ins. Class B, Mounting Stud Pattern 3-5/8 In. x 3-5/8 In., Motor Service Factor 1.00, Continuous, 60/50 Hz, Full Load Amps 1.1
