Product Information
MFR #
9685
Zoro #
G2584705
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Dia.
1/2 in
Stud Size
#8-32 x 1-5/8 in
Length Less Shaft
4 1/2 in
Bolt Circle Dia.
5 3/16 in
Shaft Length
7 1/2 in
Resilient Ring Dia.
2 1/4 in
Body Dia.
5 5/8 in
Lead Length
14 in
Overall Length
20 in
Description

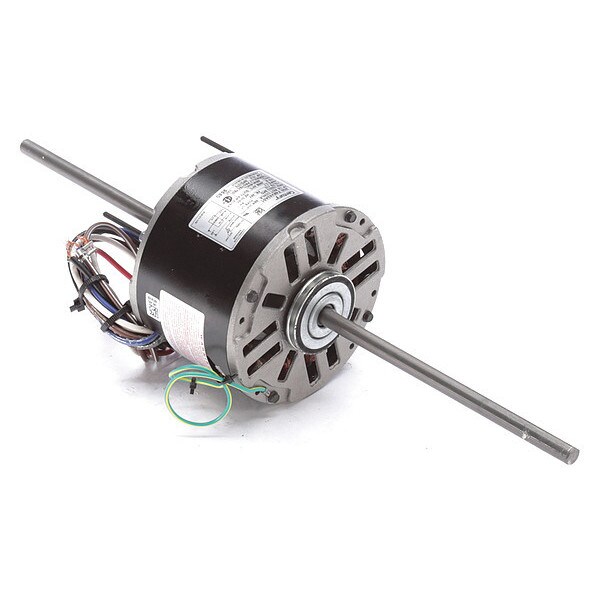

Room Air Conditioner Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/6 HP, Nameplate RPM 1,550, No. of Speeds 3, Voltage 115V AC, Full Load Amps 2.07 A, 48Y Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 50 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CCWLE, Max. Ambient Temp. 40 Degrees C, Lead Length 14 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Ring/Stud, Motor Mounting Position Horizontal, Number of Shafts 2
