  11. Room Air Cond Mtr, PSC, OAO, 1550 RPM
This item is Discontinued.

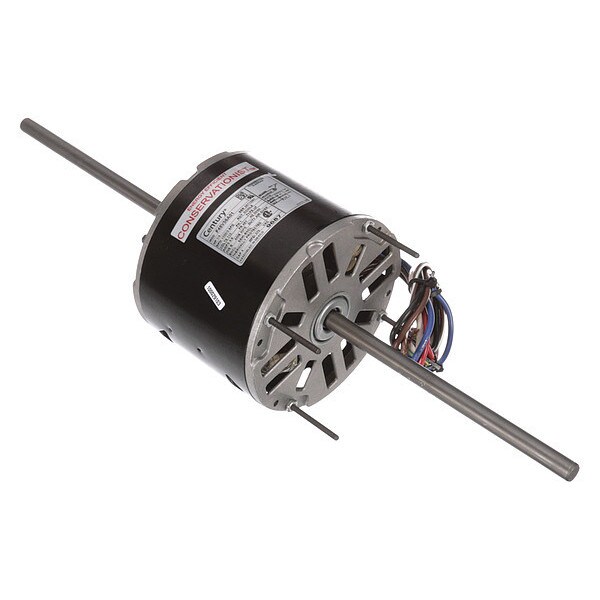

Century Room Air Cond Mtr, PSC, OAO, 1550 RPM 9687

Room Air Cond Mtr, PSC, OAO, 1550 RPM (Discontinued)

  • Mfr # 9687
  • Zoro # G2256457
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9687
Zoro #
G2256457
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Length Less Shaft
5 in
Bolt Circle Dia.
5 3/16 in
Shaft Length
7 1/2 in
Body Dia.
5 5/8 in
Stud Size
#8-32 x 1-5/8 in
Lead Length
14 in
Resilient Ring Dia.
2 1/4 in
Overall Length
20 in

Details

Motor Design
Permanent Split Capacitor
HP
1/4
RPM Range
1,501-1,600
No. of Speeds
3
Voltage
115V AC
Motor Shaft Rotation
CCWLE
Frame
48Y
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Stud
Motor Thermal Protection
Auto
Motor Shaft Design
Flat
Motor Application
HVAC/R
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Nameplate RPM
1,550
Item
Room Air Conditioner Motor
Hz
50 Hz
Phase
Single
Duty
Continuous
Full Load Amps
4.09 A
Ins. Class
B
Capacitor Required
2MDV3
Mounting Stud Pattern
3-5/8 in x 3-5/8 in
Max. Ambient Temp.
40 Degrees C
Standards
CSA Certified, UL Recognized
Motor Sub Application
Room Air Conditioner
Motor Bearings
Sleeve
Motor Service Factor
1
Application
Room Air Conditioners, evaporative cooloers, remote fan coils, and other shaft mounted fan and blower applications
Weight
15 lb
HP @ 50Hz
1/4
Usable @ 208V
No
Number of Speeds
3
Motor Mounting Position
Horizontal
Stud Quantity
4
Includes
Resilient Mounting Ring
Mounting Holes
(4) #8-32
Voltage @ 50Hz
115V AC
Motor Frame Material
Steel
RPM @ 50Hz
1,550 RPM
Usable @ 200V
No
Number of Shafts
2
Full Load Amps @ 50Hz
4.9 A
Mounting
Stud
Service Factor @ 50Hz
1

Description

Room Air Conditioner Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 HP, Nameplate RPM 1,550, No. of Speeds 3, Voltage 115V AC, Full Load Amps 4.09 A, 48Y Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 50 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CCWLE, Max. Ambient Temp. 40 Degrees C, Lead Length 14 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Stud, Motor Mounting Position Horizontal, Number of Shafts 2
