This item is Discontinued.

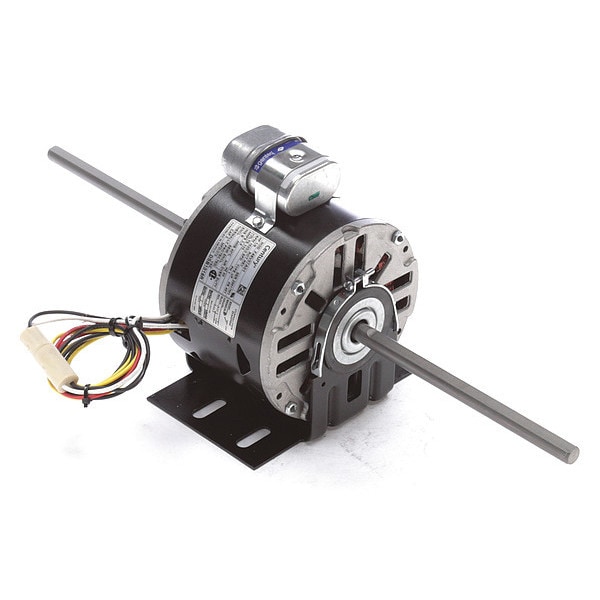

Century Room Air Cond Mtr, PSC, OAO, 1625 RPM DSB1016R

Room Air Cond Mtr, PSC, OAO, 1625 RPM (Discontinued)

  • Mfr # DSB1016R
  • Zoro # G2032186
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DSB1016R
Zoro #
G2032186
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
7 1/2 in
Resilient Ring Dia.
2 1/2 in
Lead Length
25 in
Length Less Shaft
4 11/16 in
Body Dia.
5 5/8 in
Overall Length
19 1/8 in

Details

Motor Design
Permanent Split Capacitor
HP
1/6
RPM Range
1,601-1,700
No. of Speeds
2
Voltage
115V AC
Motor Shaft Rotation
CW/CCW
Frame
48Y
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Resilient Base
Motor Application
HVAC/R
Item
Room Air Conditioner Motor
Full Load Amps
2 A
Standards
CSA Certified, UL Recognized
Phase
1
Ins. Class
B
Duty
Continuous
Motor Sub Application
Fan Coil, Room Air Conditioner Motor
Capacitor Required
Included
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Thermal Protection
Auto
Nameplate RPM
1,625 RPM
Hz
60 Hz
Motor Service Factor
1
Ring to Ring Center
4 11/16 in
Motor Shaft Design
Flat
Motor Bearings
Sleeve
Max. Ambient Temp.
40 Degrees C
Usable @ 200V
No
Weight
14 lb
Motor Mounting Position
Horizontal
Usable @ 208V
No
Duty Cycle
Continuous
Includes
Resilient Base
Motor Frame Material
Steel
Number of Shafts
2
Conduit Box Position
F3
Application
For Room Air Conditioners, Fan Coil Console Units, Packaged Heat Pumps and Other Double Shaft and Shaft-mounted Fan and Blower
Mounting
Cradle Base
Number of Speeds
2

Description

Room Air Conditioner Motor, 1 Phase, Motor Design Permanent Split Capacitor, 1/6 HP, Nameplate RPM 1,625 RPM, No. of Speeds 2, Voltage 115V AC, Full Load Amps 2 A, 48Y Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Lead Length 25 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Resilient Base
