This item is Discontinued.

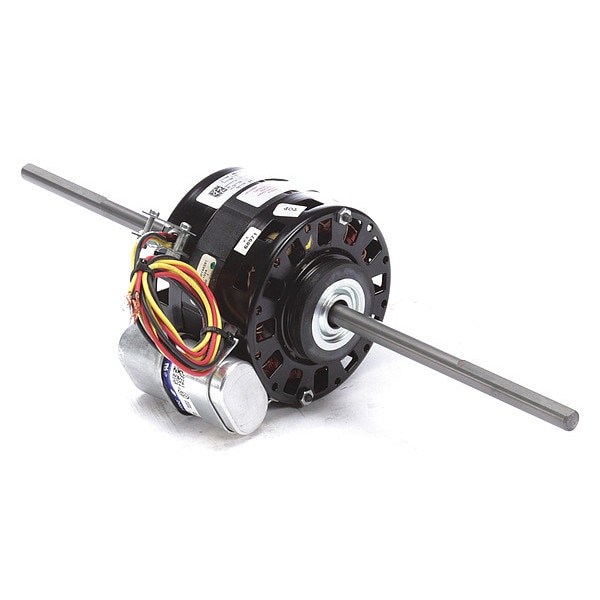

Century Room Air Cond Mtr, PSC, OAO, 1625 RPM OFC1024

Room Air Cond Mtr, PSC, OAO, 1625 RPM (Discontinued)

  • Mfr # OFC1024
  • Zoro # G2837974
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
OFC1024
Zoro #
G2837974
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
7 11/16 in
Length Less Shaft
4 11/16 in
Body Dia.
5 in
Lead Length
33 in
Resilient Ring Dia.
2 1/2 in
Overall Length
19 in

Details

Motor Design
Permanent Split Capacitor
HP
1/4
RPM Range
1,601-1,700
No. of Speeds
2
Voltage
208-230V AC
Motor Shaft Rotation
CCWLE
Frame
42Y
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Resilient Ring
Full Load Amps
1.8 A
Item
OEM Replacement Motor
Nameplate RPM
1,625 RPM
Includes
Permanent Split Capacitor, Resilient Rings
Standards
CSA Certified, UL Recognized
Duty
Continuous
Capacitor Required
Included
Hz
60 Hz
Motor Application
OEM Replacement Motor
Motor Service Factor
1
Motor Thermal Protection
Auto
Phase
1
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Motor Bearings
Sleeve
Motor Sub Application
Room Air Conditioner
Max. Ambient Temp.
40 Degrees C
Motor Shaft Design
Flat
Ins. Class
A
Ring to Ring Center
4 1/8 in
Motor Mounting Position
Horizontal
Mounting Holes
4
Number of Shafts
2
Usable @ 200V
No
Stud Quantity
4
Duty Cycle
Continuous
Usable @ 208V
Yes
Weight
11 lb
Finish
Black Enamel
Mounting
Ring
Number of Speeds
2

Description

OEM Replacement Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,625 RPM, No. of Speeds 2, Voltage 208-230V AC, Full Load Amps 1.8 A, 42Y Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Resilient Ring
