  6. Room Air Cond Mtr, Shad Pol, OAO, 1550 RPM

This item is Discontinued.

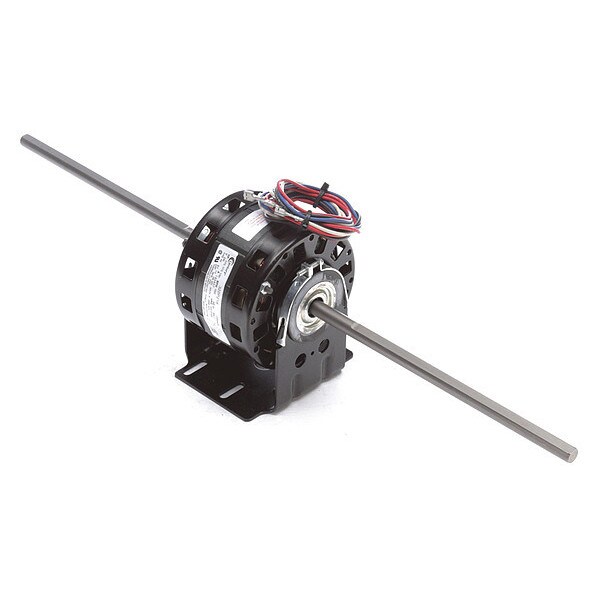

Century Room Air Cond Mtr, Shad Pol, OAO, 1550 RPM DB4405

Room Air Cond Mtr, Shad Pol, OAO, 1550 RPM (Discontinued)

  • Mfr # DB4405
  • Zoro # G1080107
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
DB4405
Zoro #
G1080107
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
8 3/8 in
Body Dia.
5 in
Length Less Shaft
4 7/16 in

Details

Motor Design
Shaded Pole
HP
1/10
RPM Range
1501-1600
No. of Speeds
3
Voltage
230
Motor Shaft Rotation
CCWLE
Frame
42Y
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Cradle Base
Motor Bearings
Sleeve
Motor Application
HVAC/R
Duty
Continuous
Ring to Ring Center
1 11/16 x 3 1/2 in
Full Load Amps
1.8
Item
Room Air Conditioner Motor
Nameplate RPM
1550
Hz
60
Motor Thermal Protection
Auto
Max. Ambient Temp.
40 Degrees C
Voltage Compatibility
230, 240, 115/230, 120/240
Capacitor Required
No
Standards
UL, CSA
Phase
1
Motor Service Factor
1.00
Motor Sub Application
Room Air Conditioner
Ins. Class
A

Description

Room Air Conditioner Motor, Shaded Pole, 1/10 HP, RPM Range 1501-1600, No. of Speeds 3, Voltage 230, CCWLE Motor Shaft Rotation, 42Y Frame, Open Air-Over, Cradle Base Motor Mounting Type, Shaft Dia. 1/2 in, Shaft Length 8 3/8 in, Motor Thermal Protection Auto, 1550 Nameplate RPM, 1 Phase, Sleeve Motor Bearings, Capacitor Required No, Ins. Class A, Motor Service Factor 1.00, Continuous, 60 Hz, Full Load Amps 1.8, Max. Ambient Temp. 40 Degrees C, Body Dia. 5 in, Length Less Shaft 4 7/16 in
